Wiring Diagrams
>>
OEM Component Harness Location Charts (Except Electric Vehicle)
>>
Component Location Charts
>>
Coil-On- Plug 1 (1.0L FOX) Component Location
Coil-On- Plug 1 (1.0L FOX) Component Location

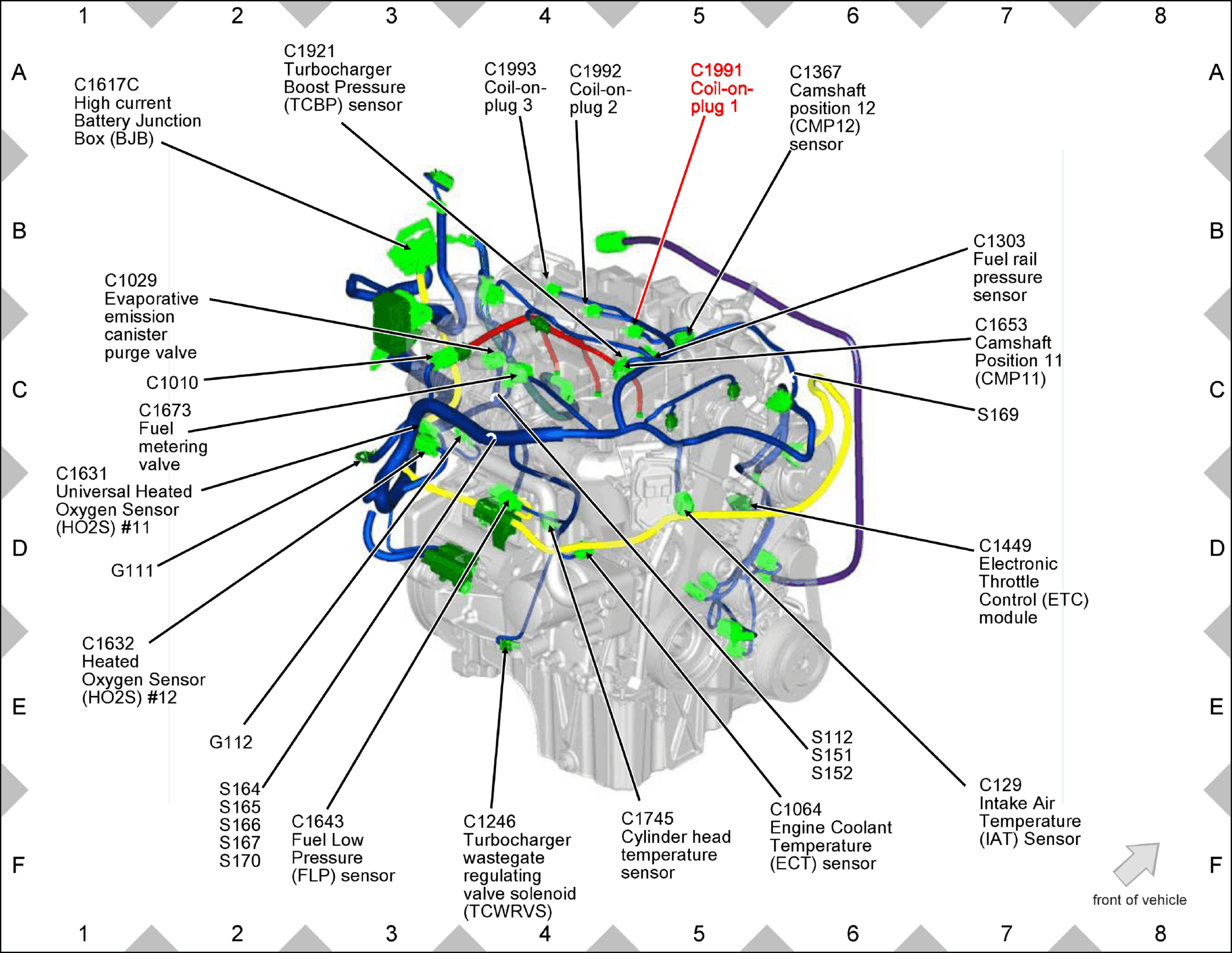

Fig 1: Coil-On- Plug 1 (1.0L FOX) Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
