Clutch Motor 2 (Automatic Transmission) Component Location

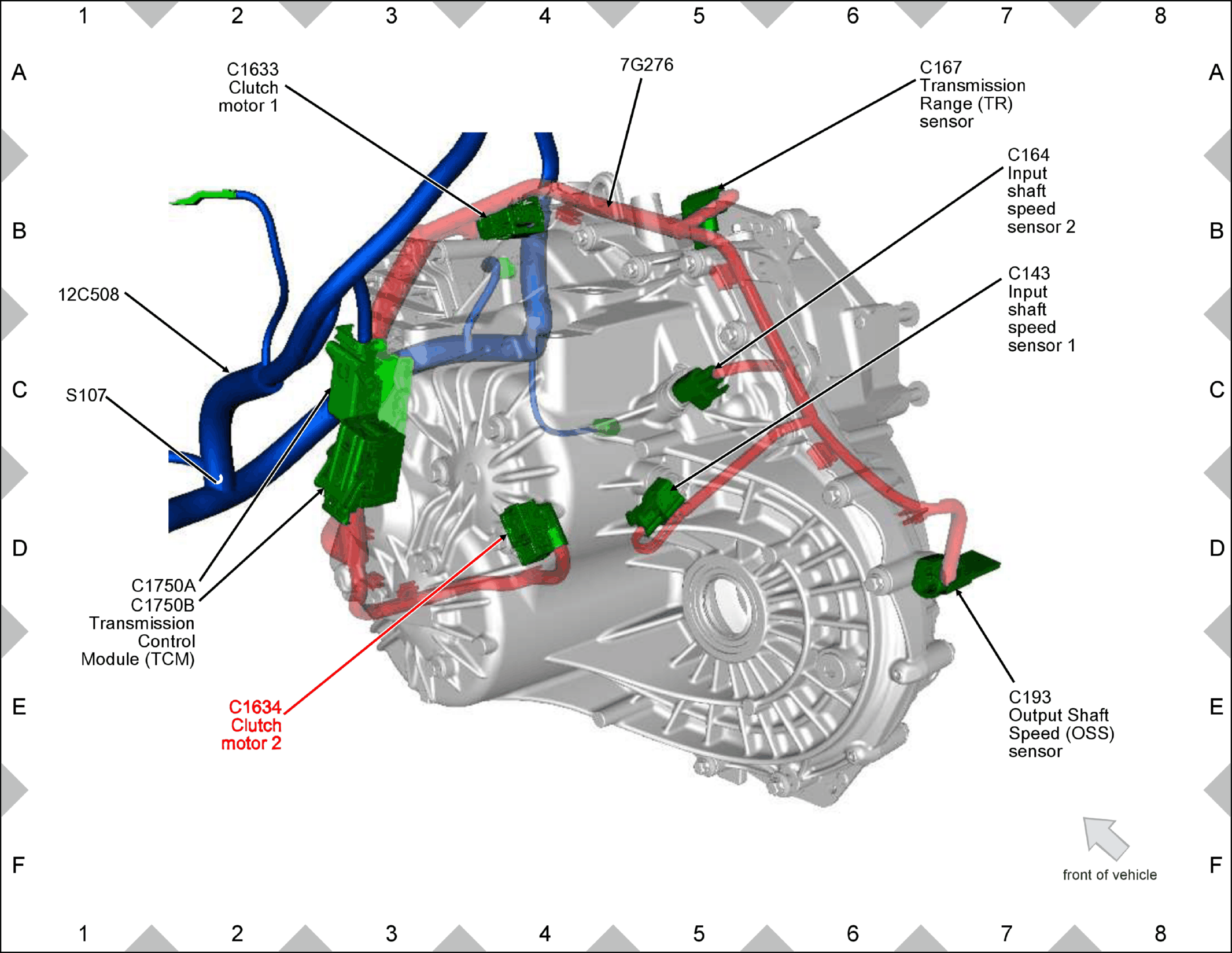

Fig 1: Clutch Motor 2 (Automatic Transmission) Component Location

GFDW52268

Courtesy of FORD MOTOR COMPANY
