Blower Motor Speed Control Component Location

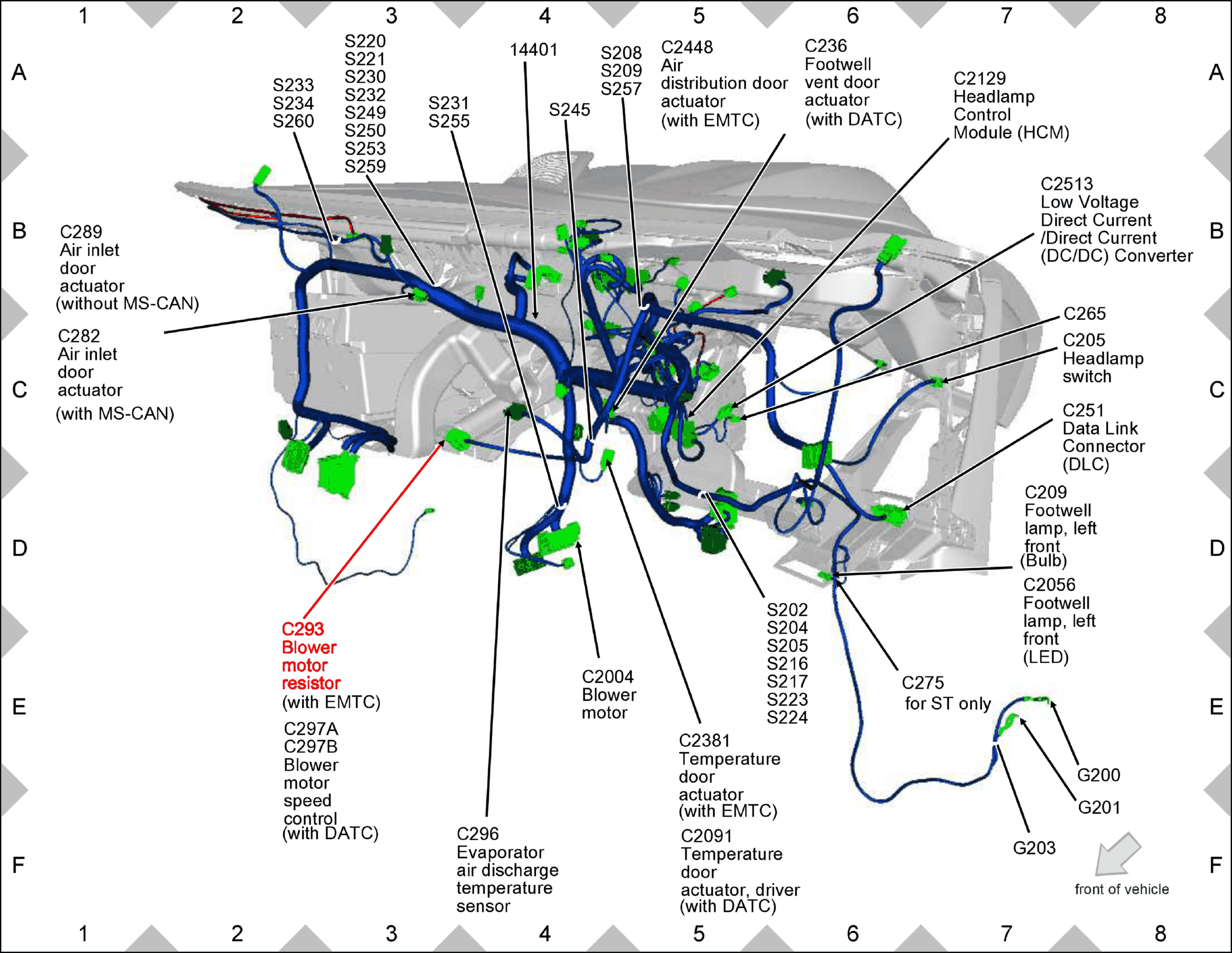

Fig 1: Blower Motor Speed Control Component Location

GFDW52258

Courtesy of FORD MOTOR COMPANY
