Active Park Assist Sensor, Left Component Location

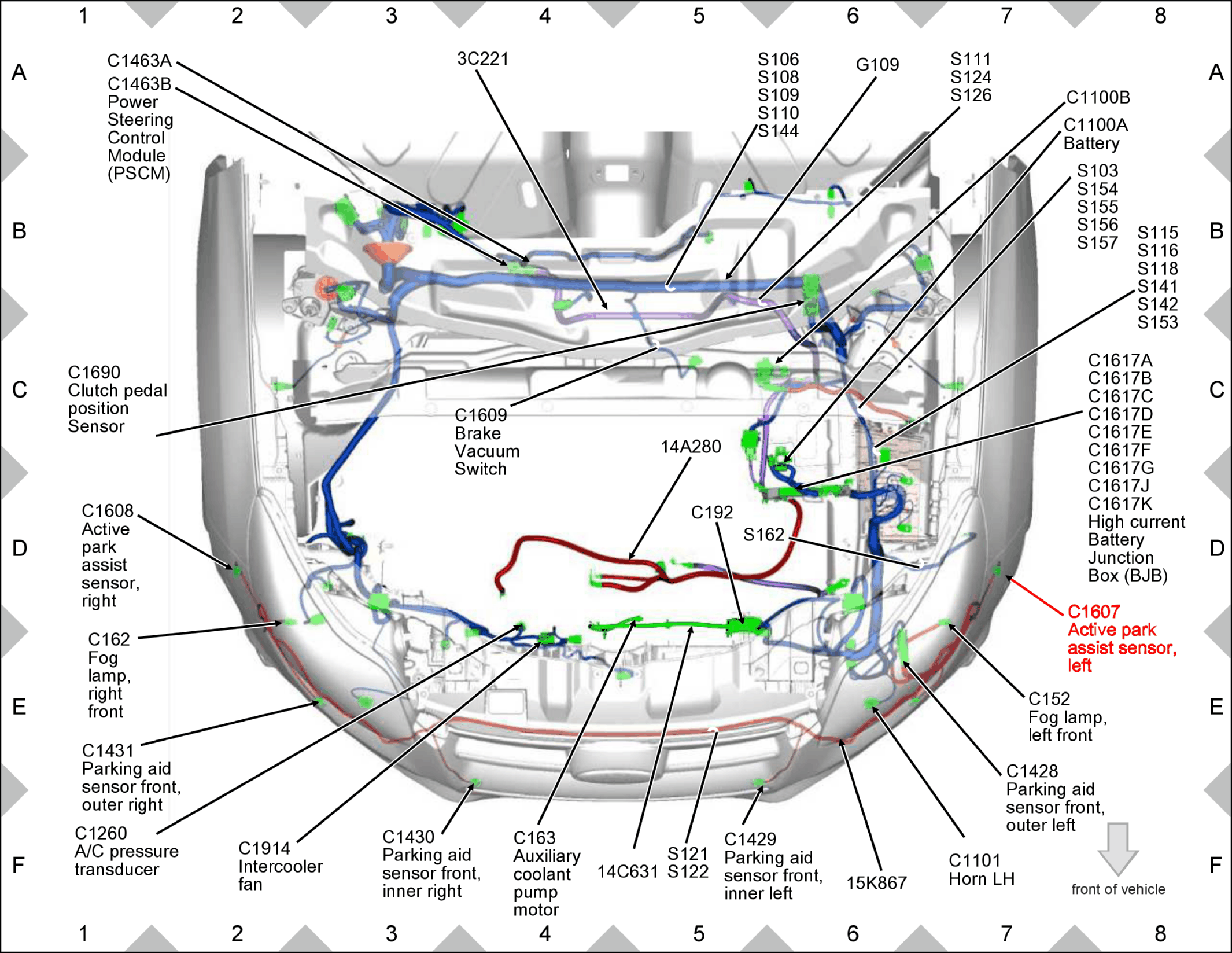

Fig 1: Active Park Assist Sensor, Left Component Location

GFDW52236

Courtesy of FORD MOTOR COMPANY
