A/C Pressure Transducer Component Location

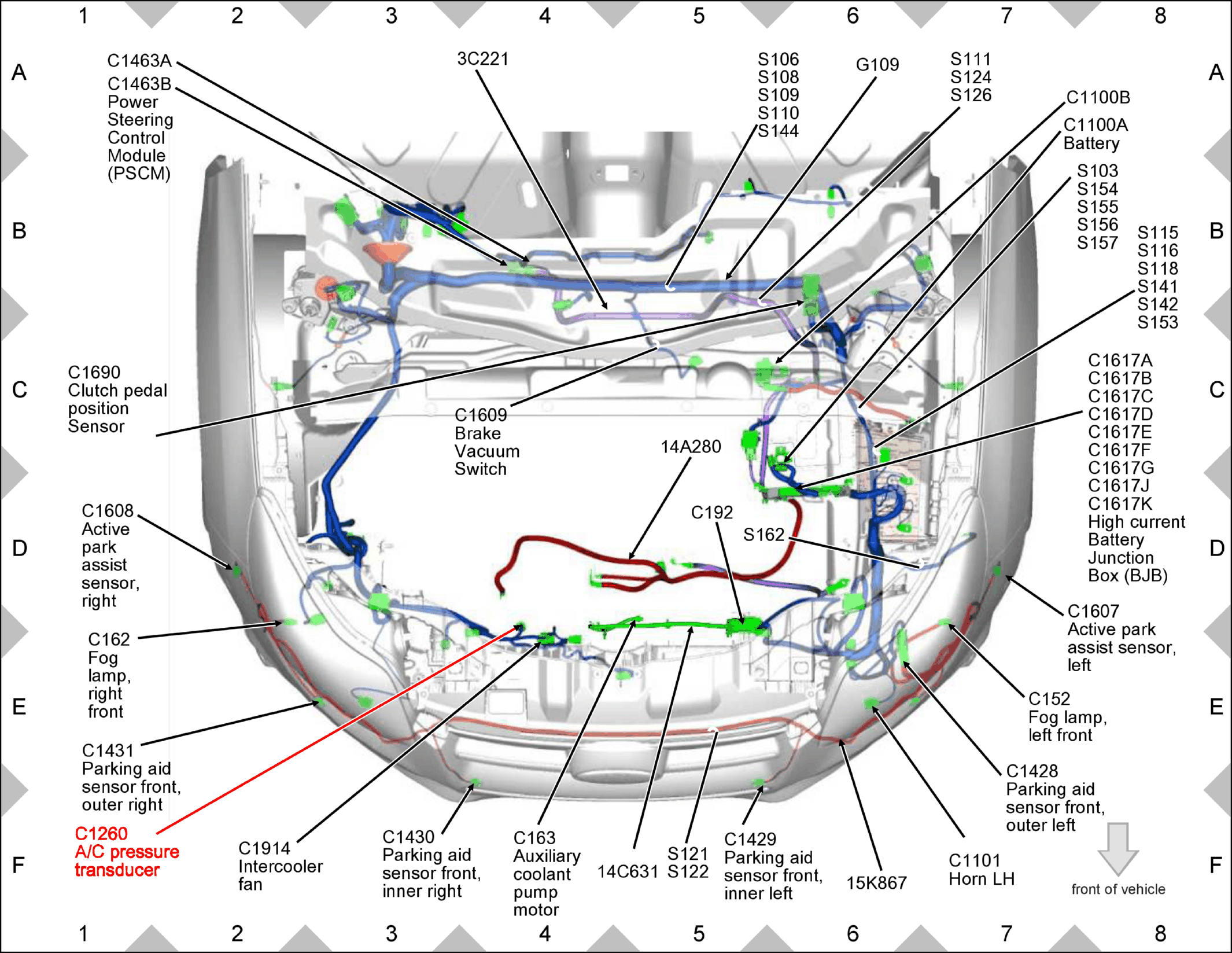

Fig 1: A/C Pressure Transducer Component Location

GFDW52245

Courtesy of FORD MOTOR COMPANY
