6F15 Transmission (1.0L FOX) Component Location

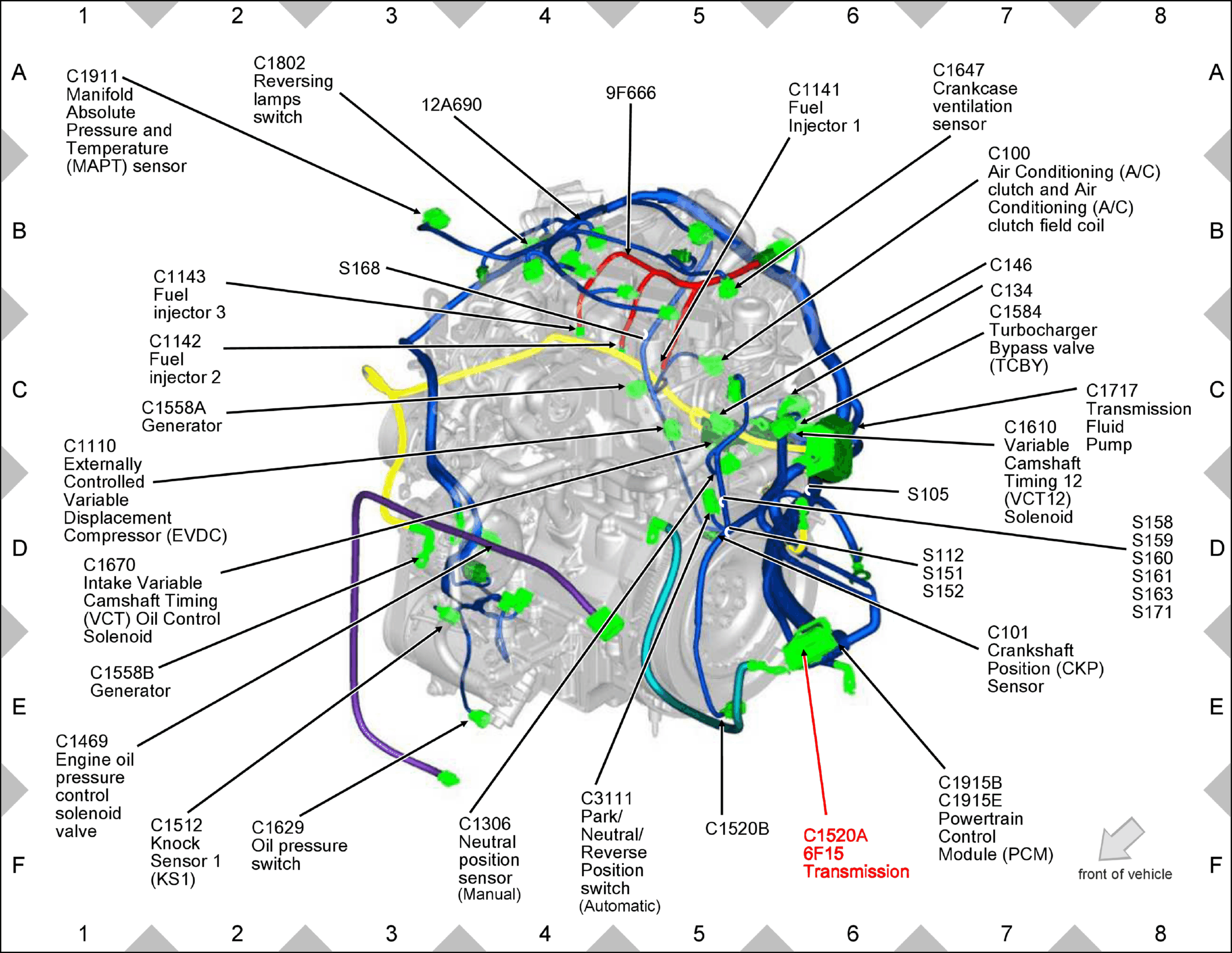

Fig 1: 6F15 Transmission (1.0L FOX) Component Location

GFDW52233

Courtesy of FORD MOTOR COMPANY
