Brake Vacuum Pump - 2.3L EcoBoost (257kW/350PS) - MI4: Removal

NOTE: Removal steps in this procedure may contain installation details.

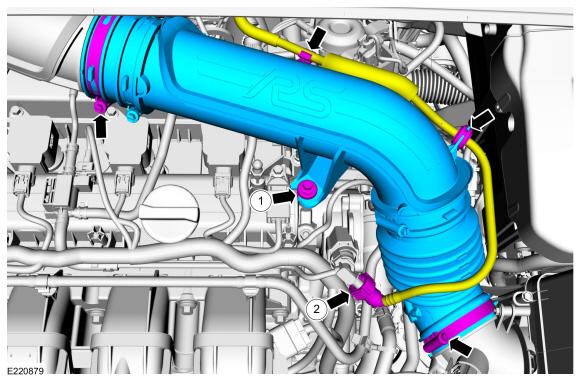

• 1.



Courtesy of FORD MOTOR COMPANY

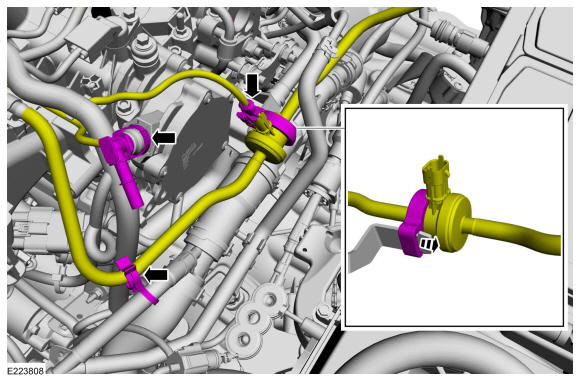

• 2.



Courtesy of FORD MOTOR COMPANY

• 3.



Courtesy of FORD MOTOR COMPANY

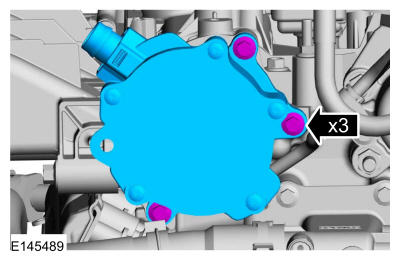

• 4.

  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

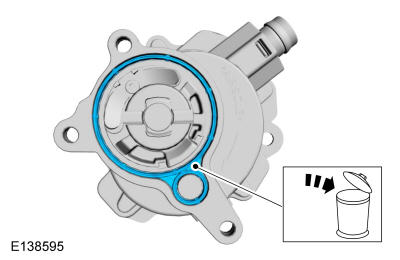

• 5.


  NOTE: Make sure that a new component is installed.
  NOTE: Make sure that the mating faces are clean and free of foreign material.

Courtesy of FORD MOTOR COMPANY
