OEM Wiring Diagram Symbols (Electric Vehicle): Symbols

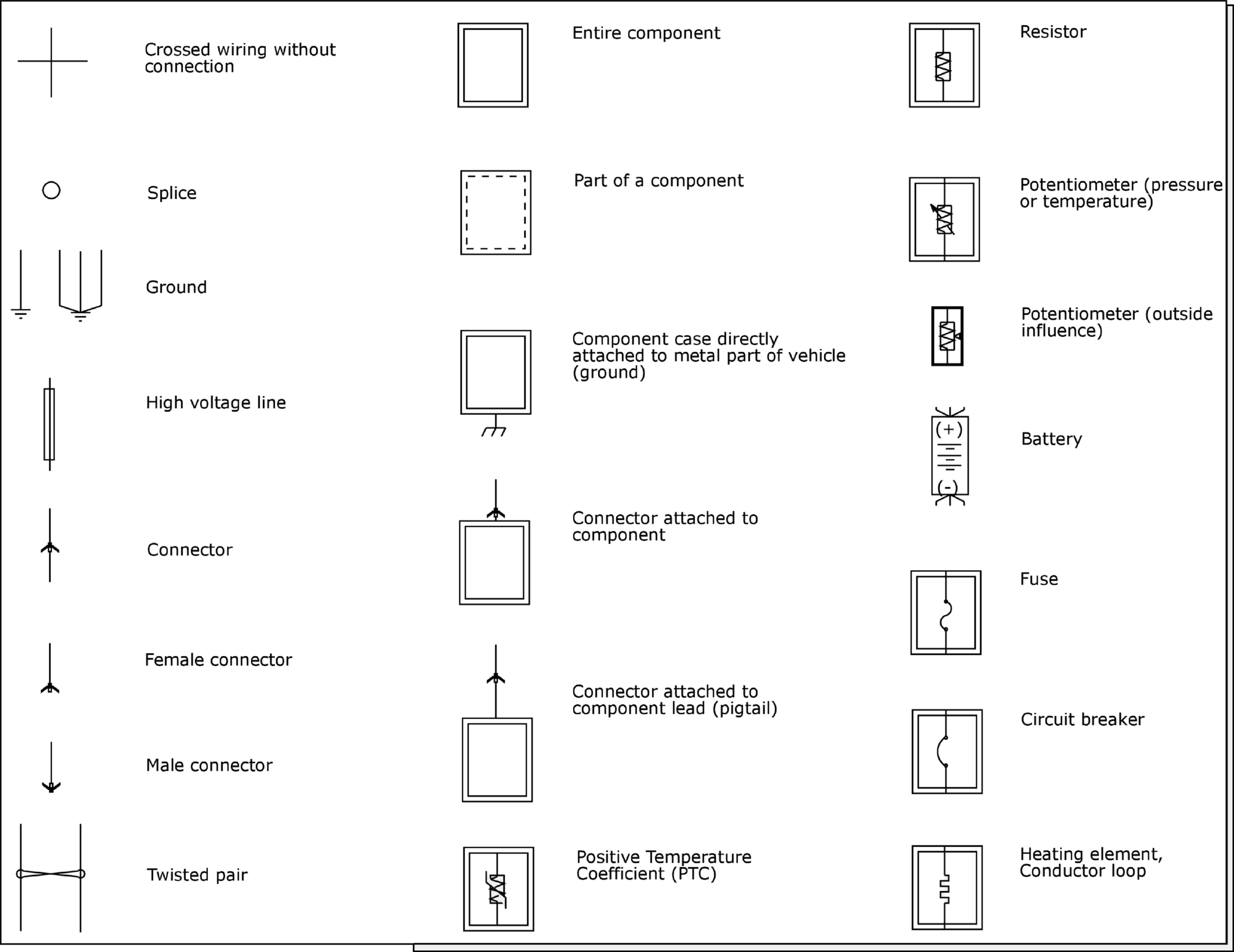

GFDW53849Courtesy of FORD MOTOR COMPANY

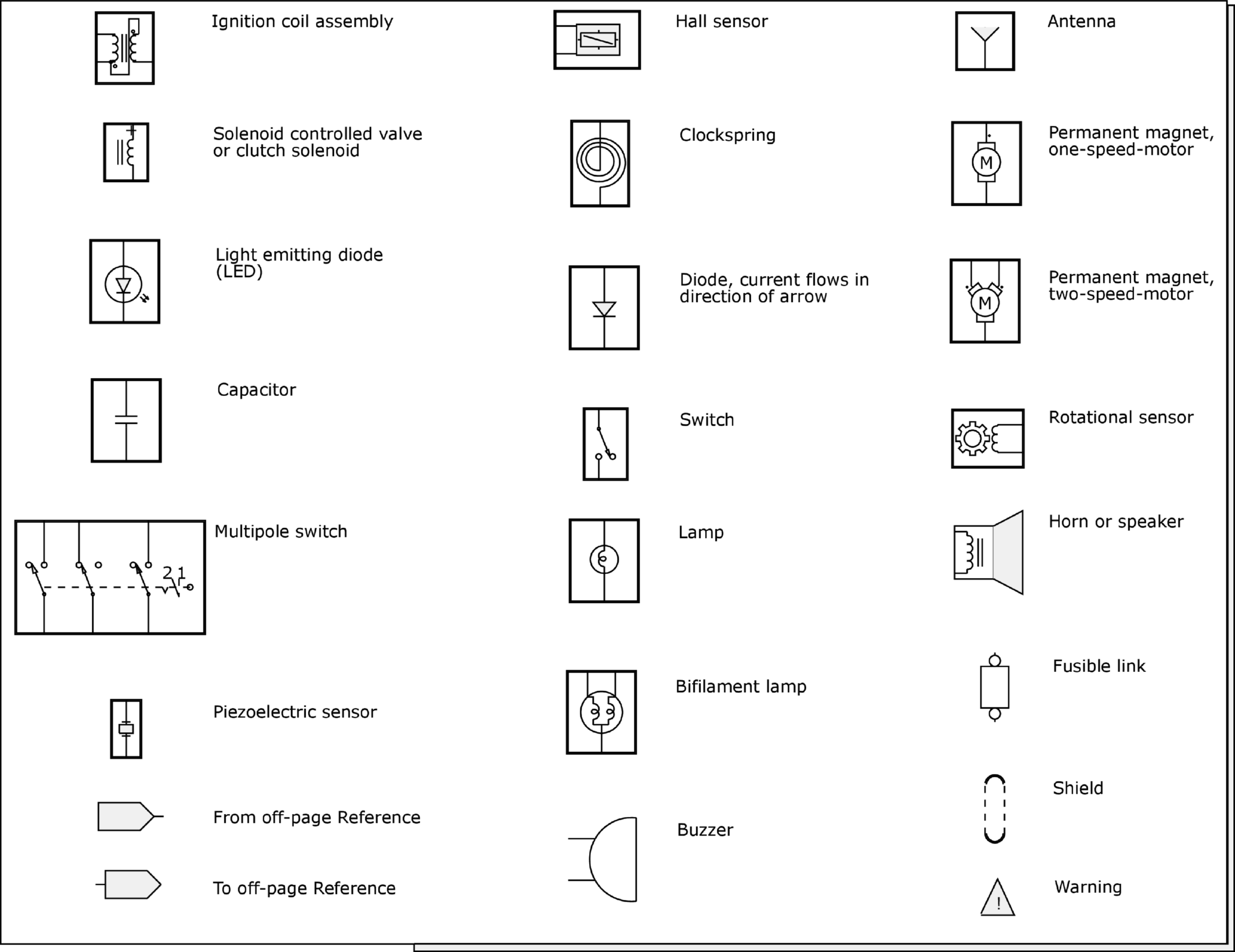

GFDW53850Courtesy of FORD MOTOR COMPANY

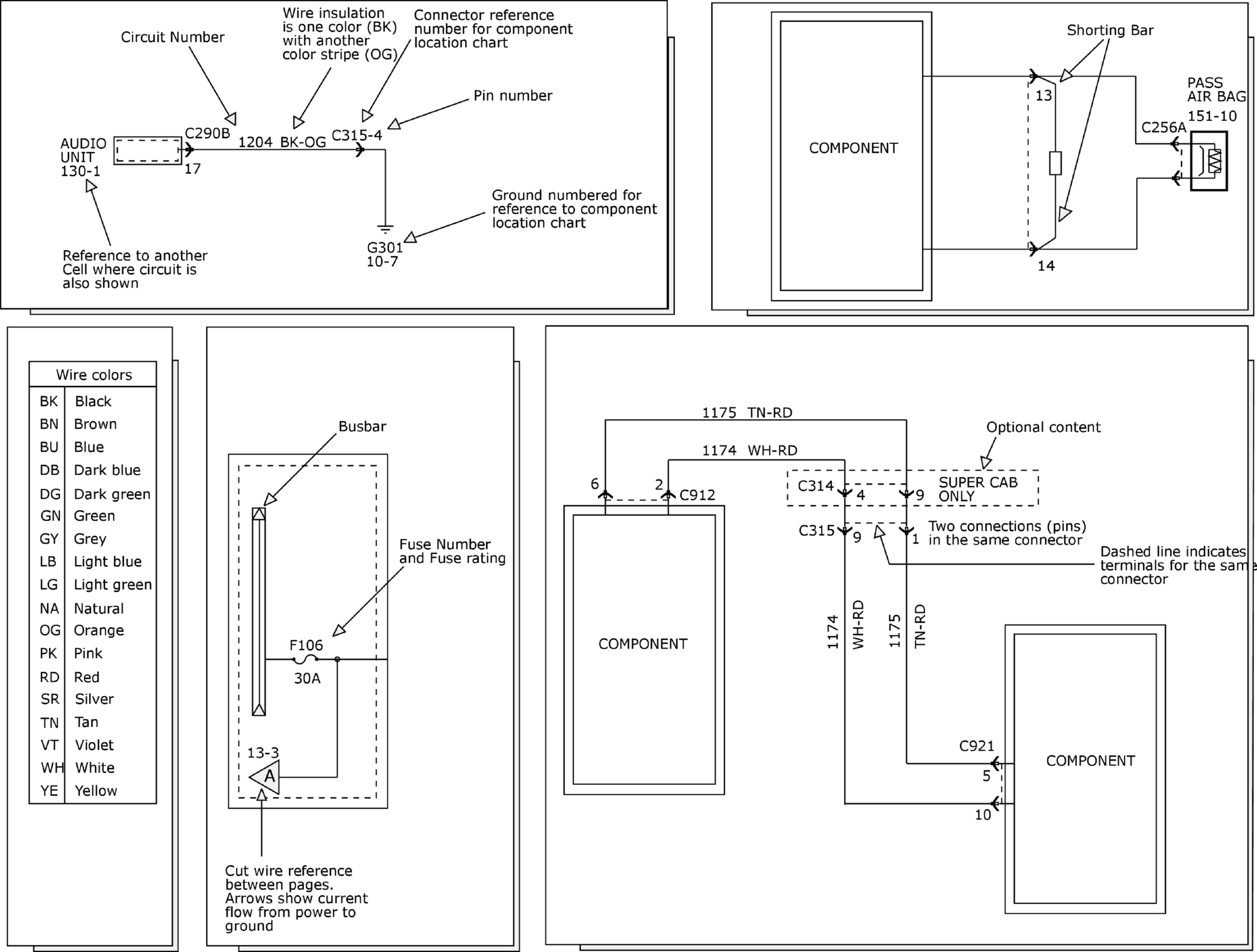

GFDW53851Courtesy of FORD MOTOR COMPANY

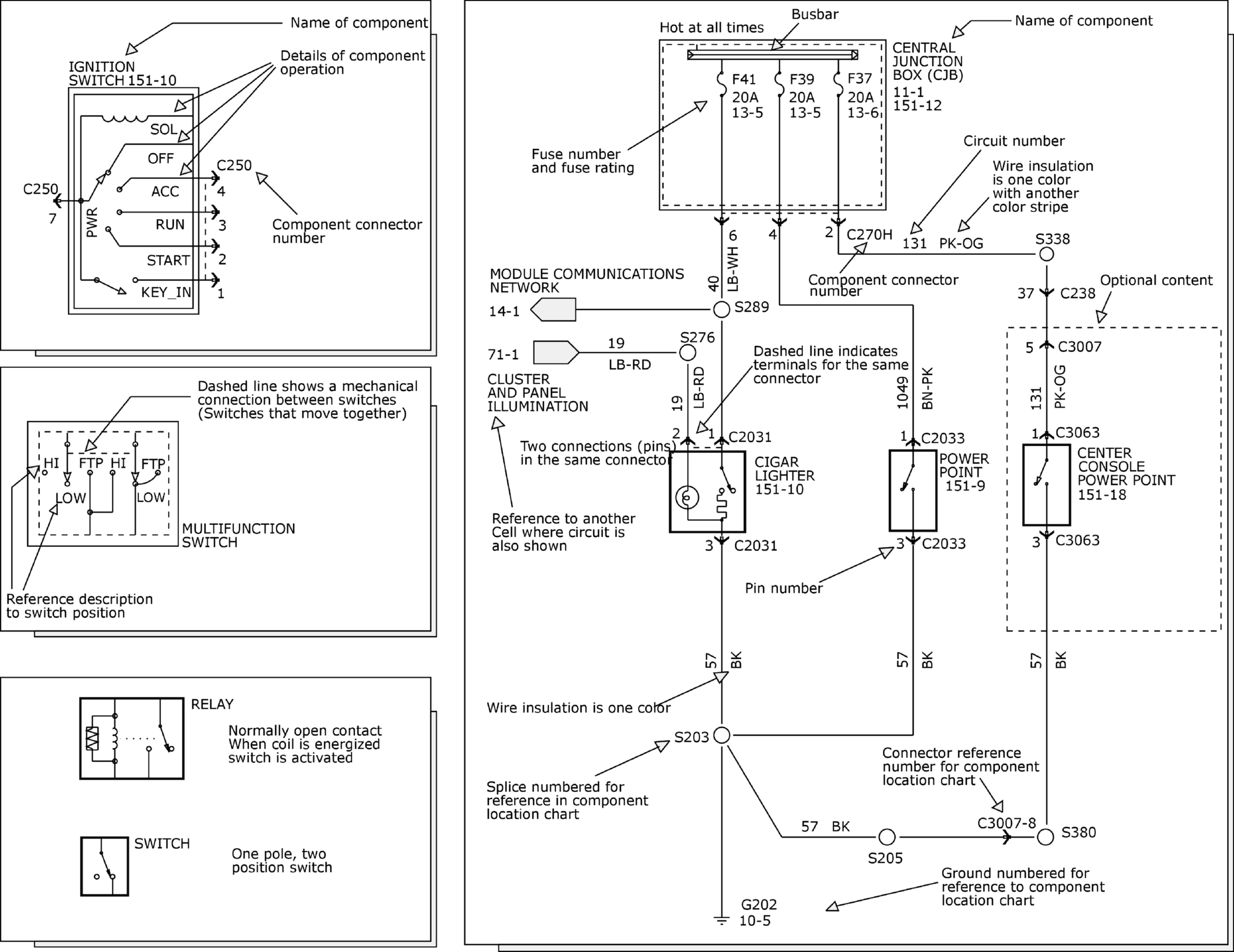

GFDW53852Courtesy of FORD MOTOR COMPANY

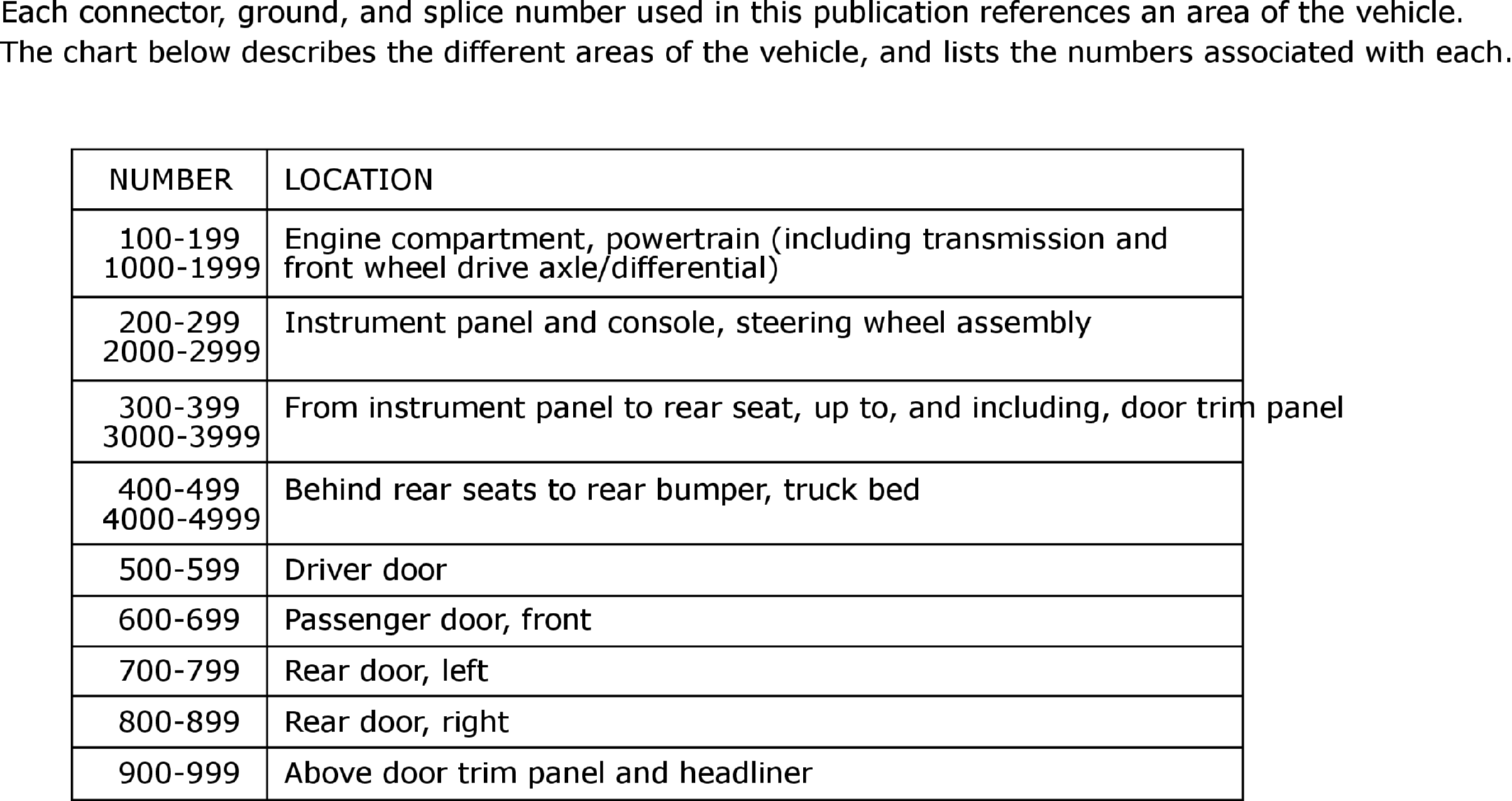

GFDW53853Courtesy of FORD MOTOR COMPANY
