Vehicle Audible Signal For Pedestrian

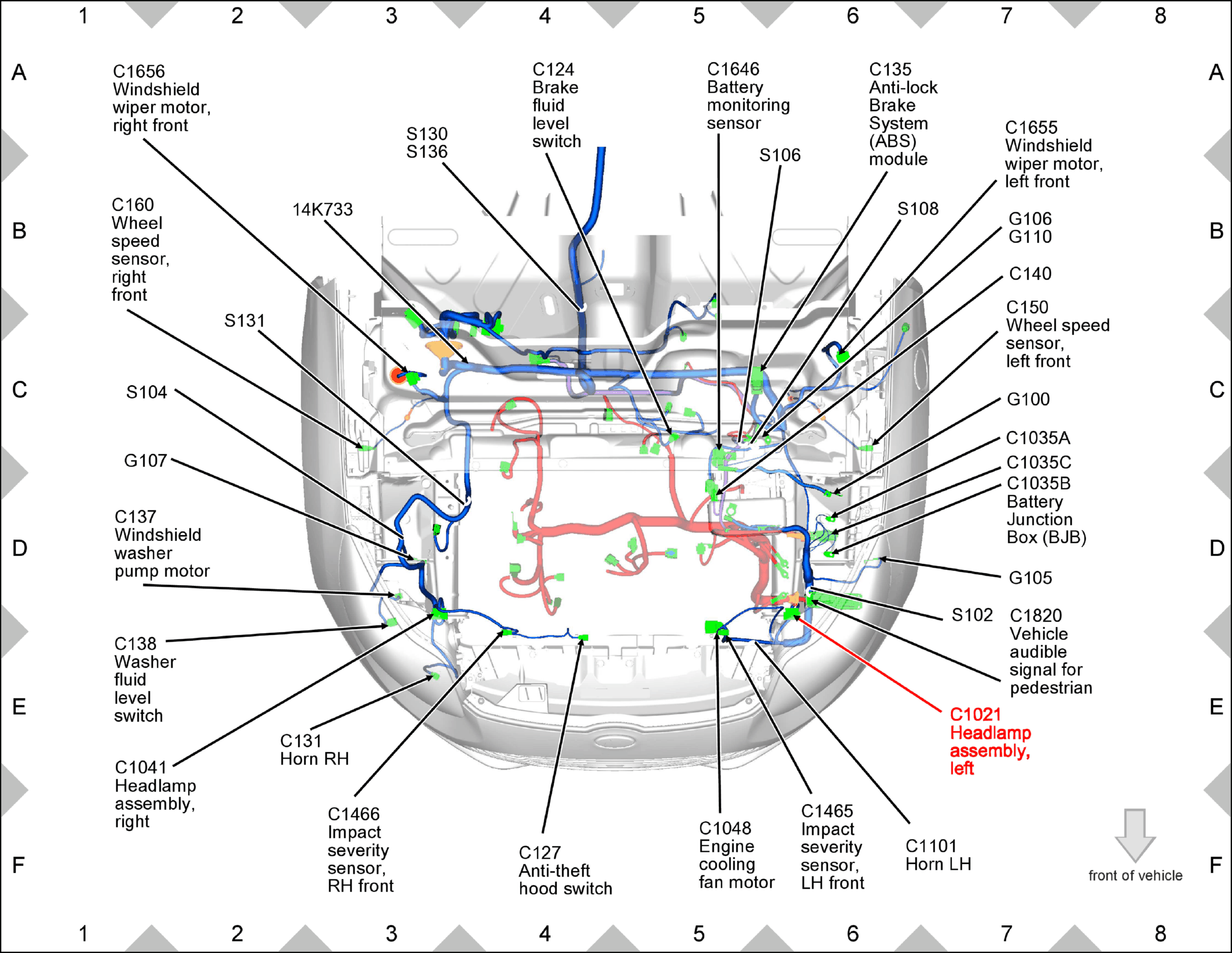

Fig 1: Vehicle Audible Signal For Pedestrian Component Location

GFDW53248

Courtesy of FORD MOTOR COMPANY
