Home >> Ford >> 2016 >> Focus Electric >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts (Electric Vehicle) >> Component Location Charts >> Seat Control Switch, Driver Side Front

Seat Control Switch, Driver Side Front

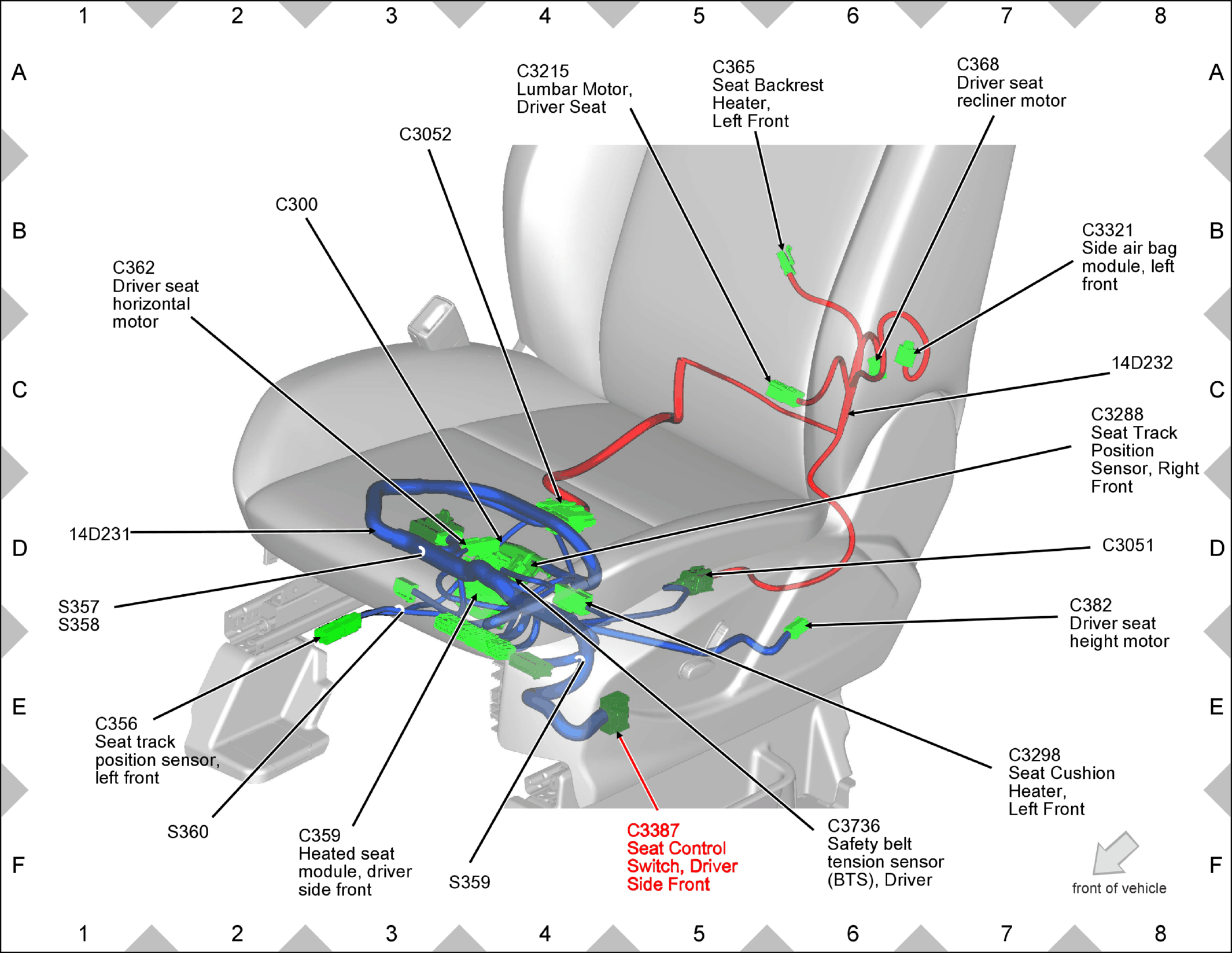

Fig 1: Seat Control Switch, Driver Side Front Component Location

GFDW53222

Courtesy of FORD MOTOR COMPANY
