Seat Backrest Heater Mat, Right Front

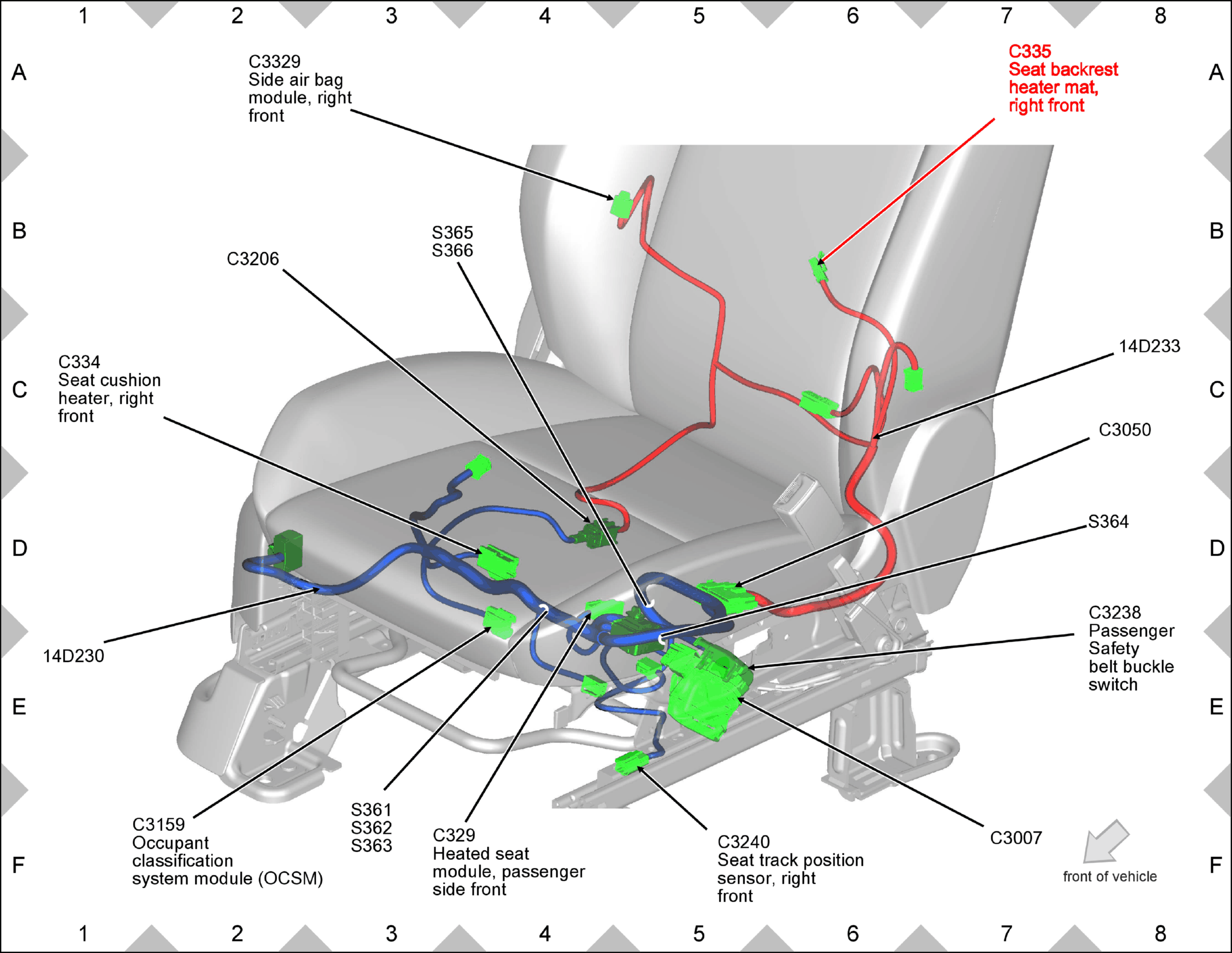

Fig 1: Seat Backrest Heater Mat, Right Front Component Location

GFDW53221

Courtesy of FORD MOTOR COMPANY
