Safety Belt Anchor Pretensioner, Driver

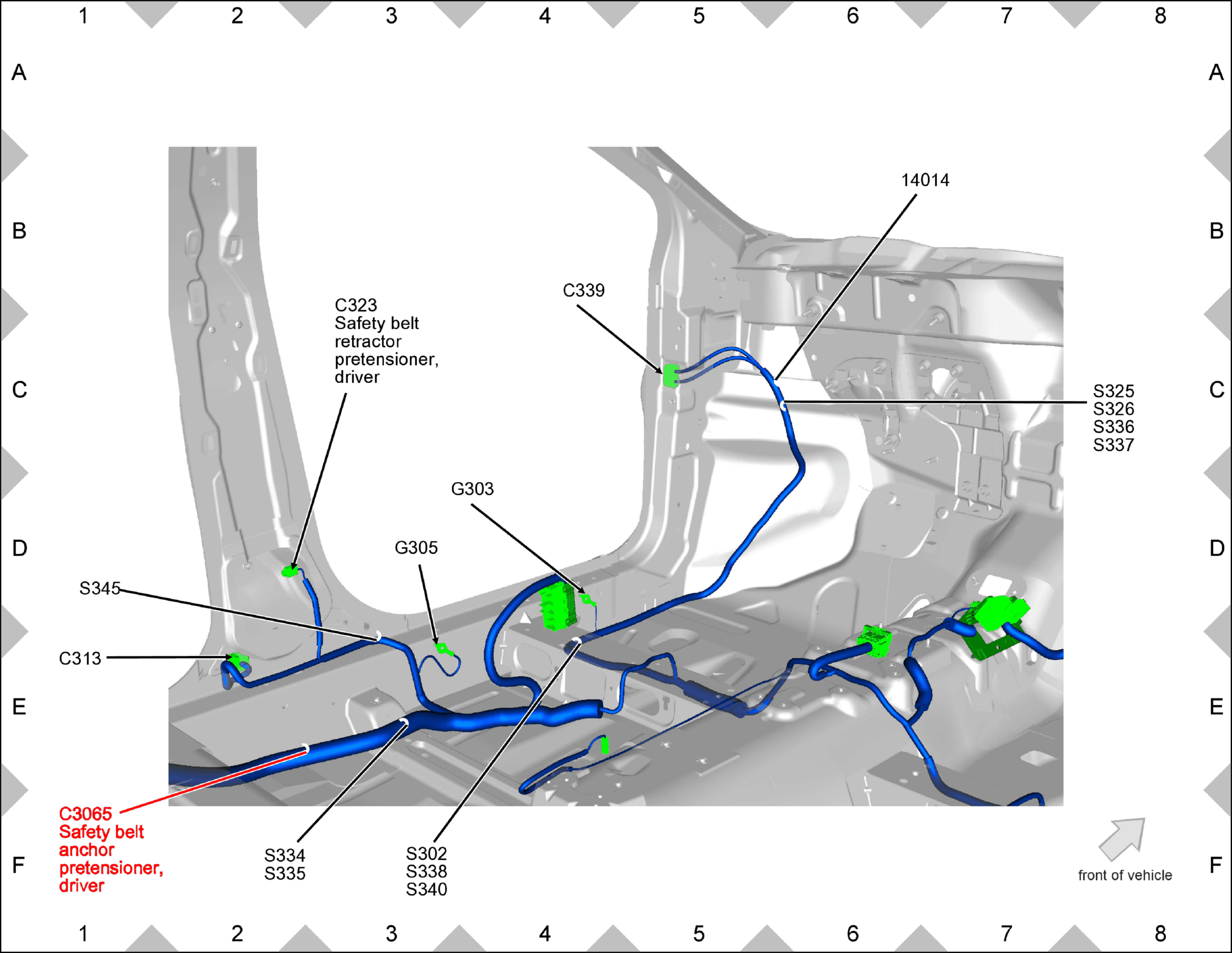

Fig 1: Safety Belt Anchor Pretensioner, Driver Component Location

GFDW53216

Courtesy of FORD MOTOR COMPANY
