Power Window Motor, Driver Side Front

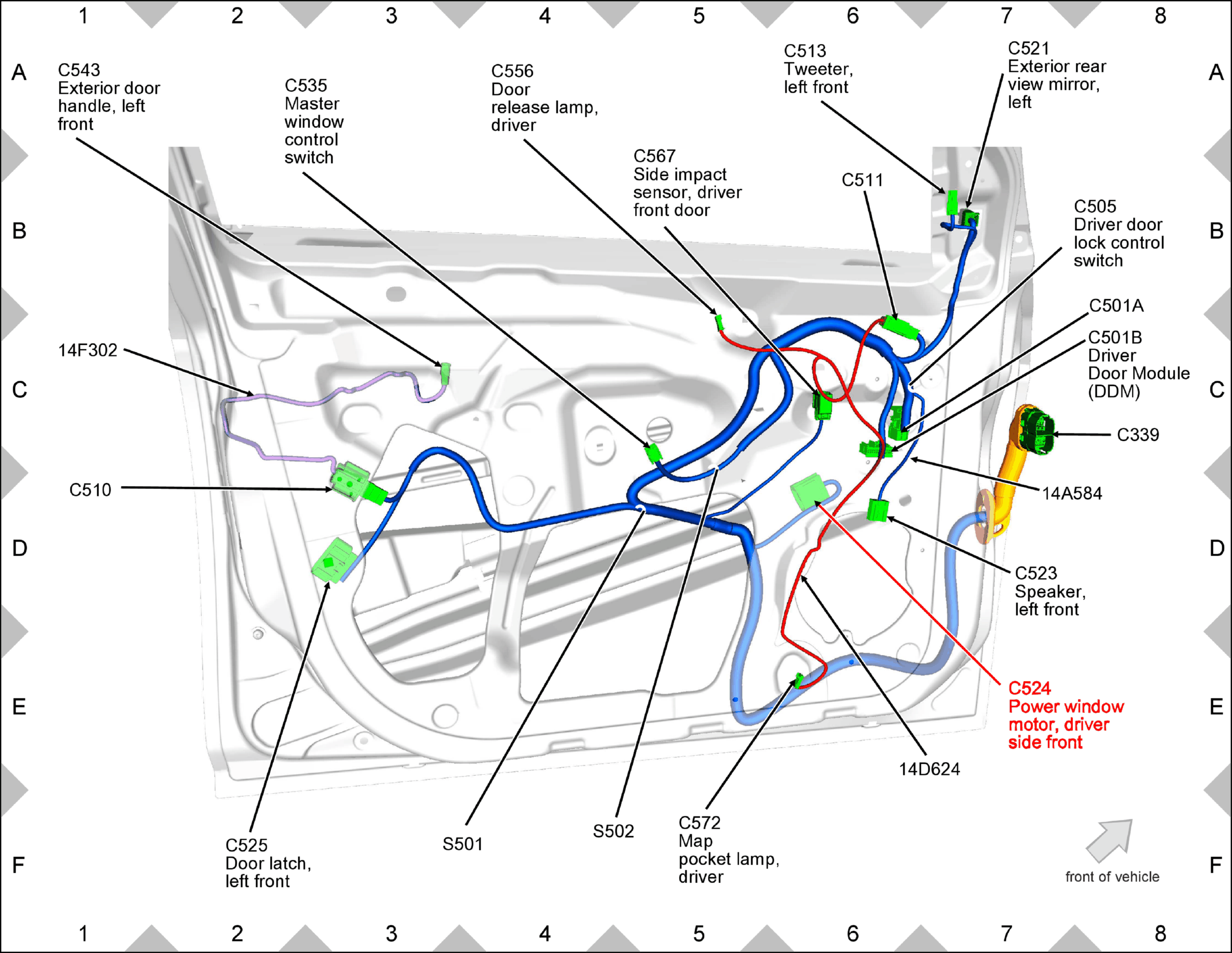

Fig 1: Power Window Motor, Driver Side Front Component Location

GFDW53208

Courtesy of FORD MOTOR COMPANY
