OEM Component Harness Location Charts (Electric Vehicle)
>>
Component Location Charts
>>
Power Point, Rear
Power Point, Rear

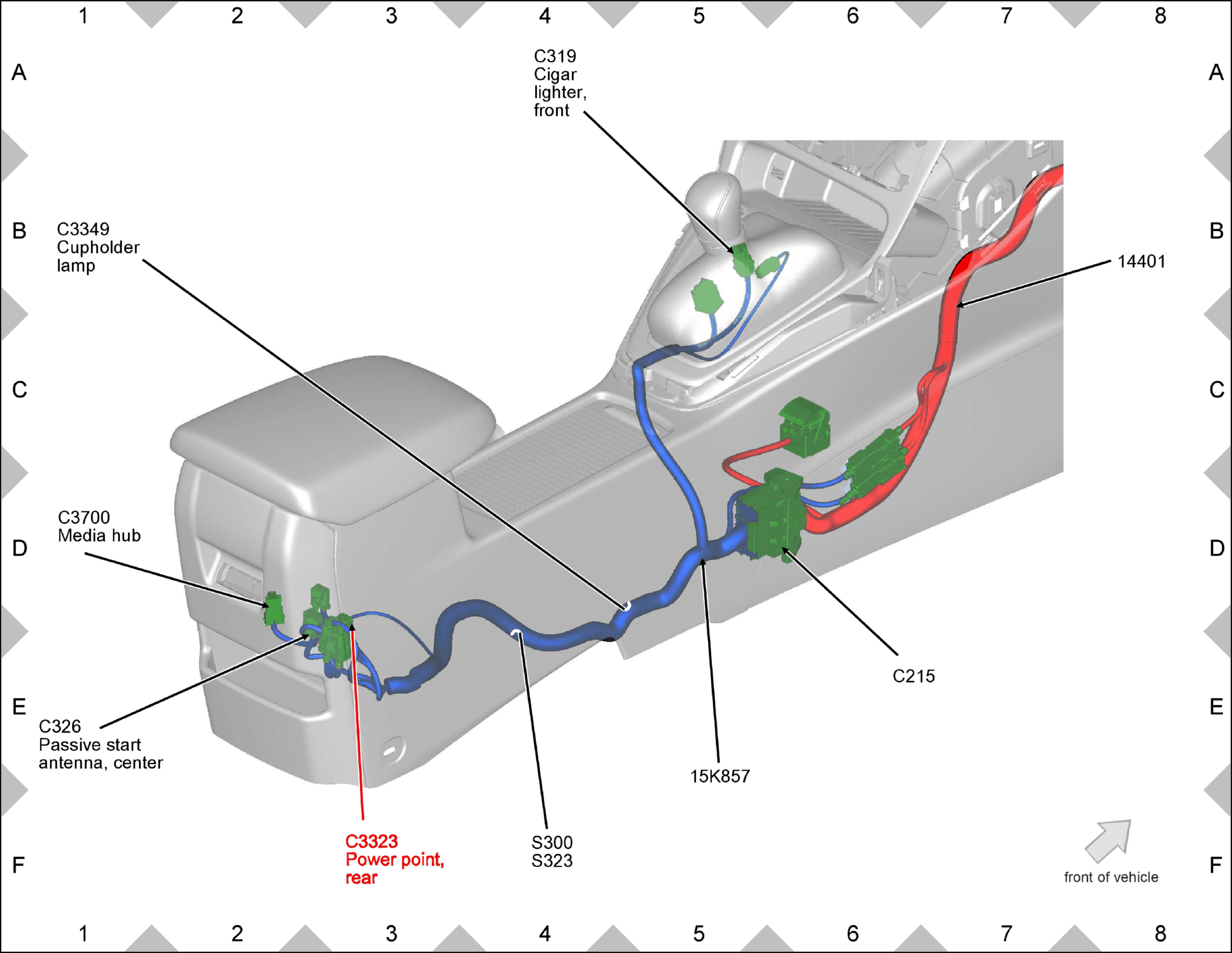

Fig 1: Power Point, Rear Component Location
Courtesy of FORD MOTOR COMPANY
