Passenger Air Bag Module

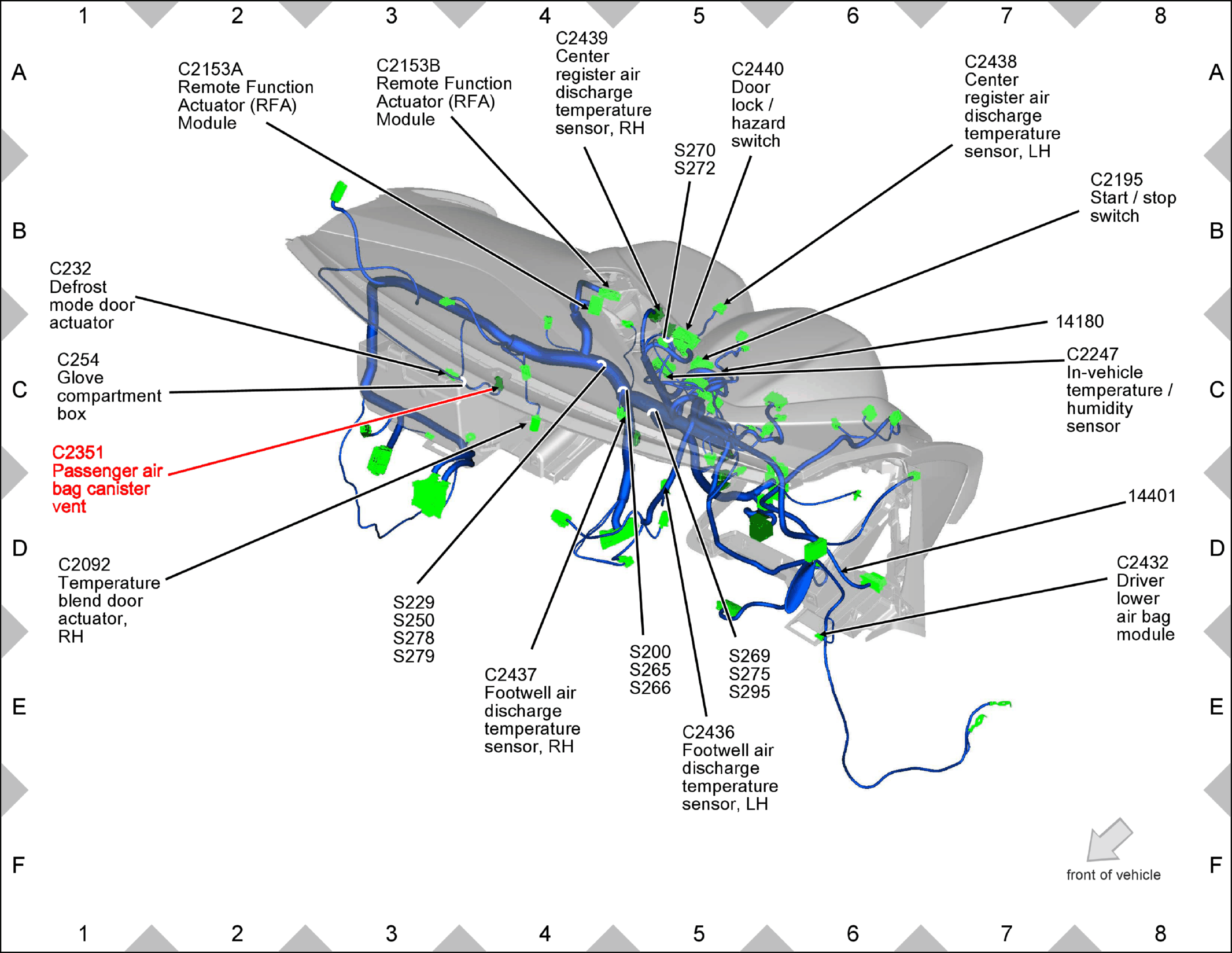

Fig 1: Passenger Air Bag Module Component Location

GFDW53200

Courtesy of FORD MOTOR COMPANY
