Occupant Classification System Module (OCSM)

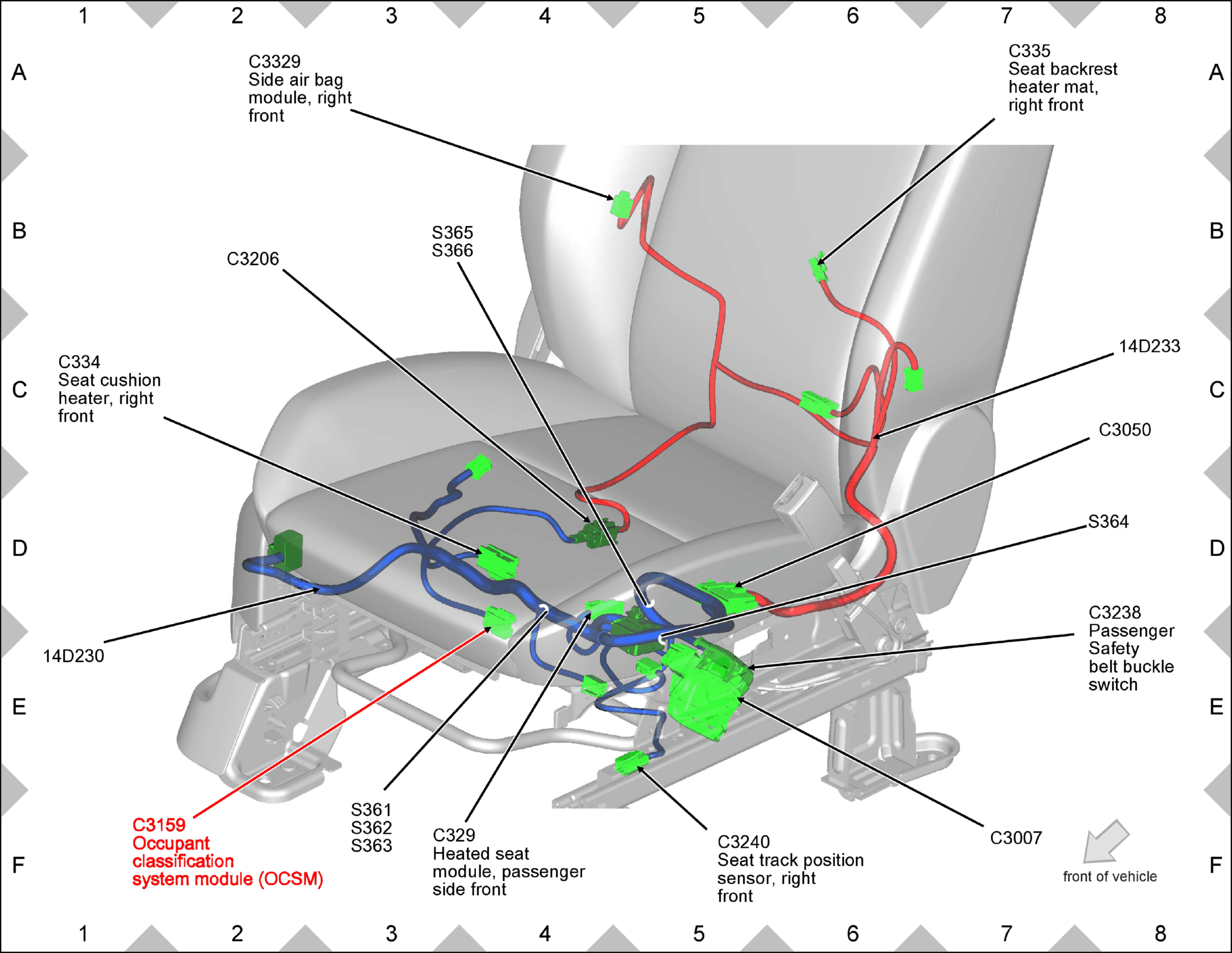

Fig 1: Occupant Classification System Module (OCSM) Component Location

GFDW53193

Courtesy of FORD MOTOR COMPANY
