Component Location Charts: Microphone

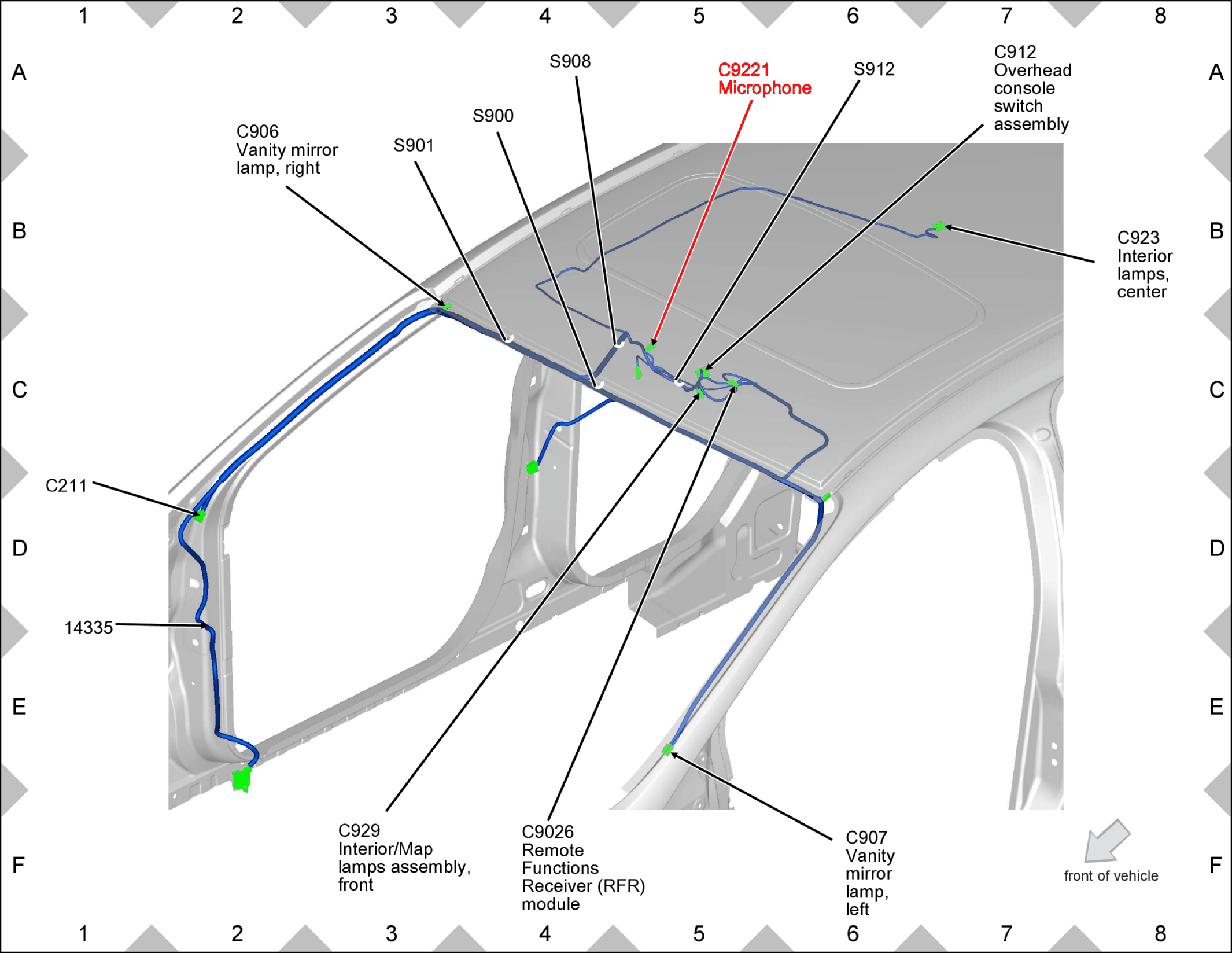

Fig 1: Microphone Component Location

GFDW53192

Courtesy of FORD MOTOR COMPANY
