High Current Battery Junction Box (BJB)

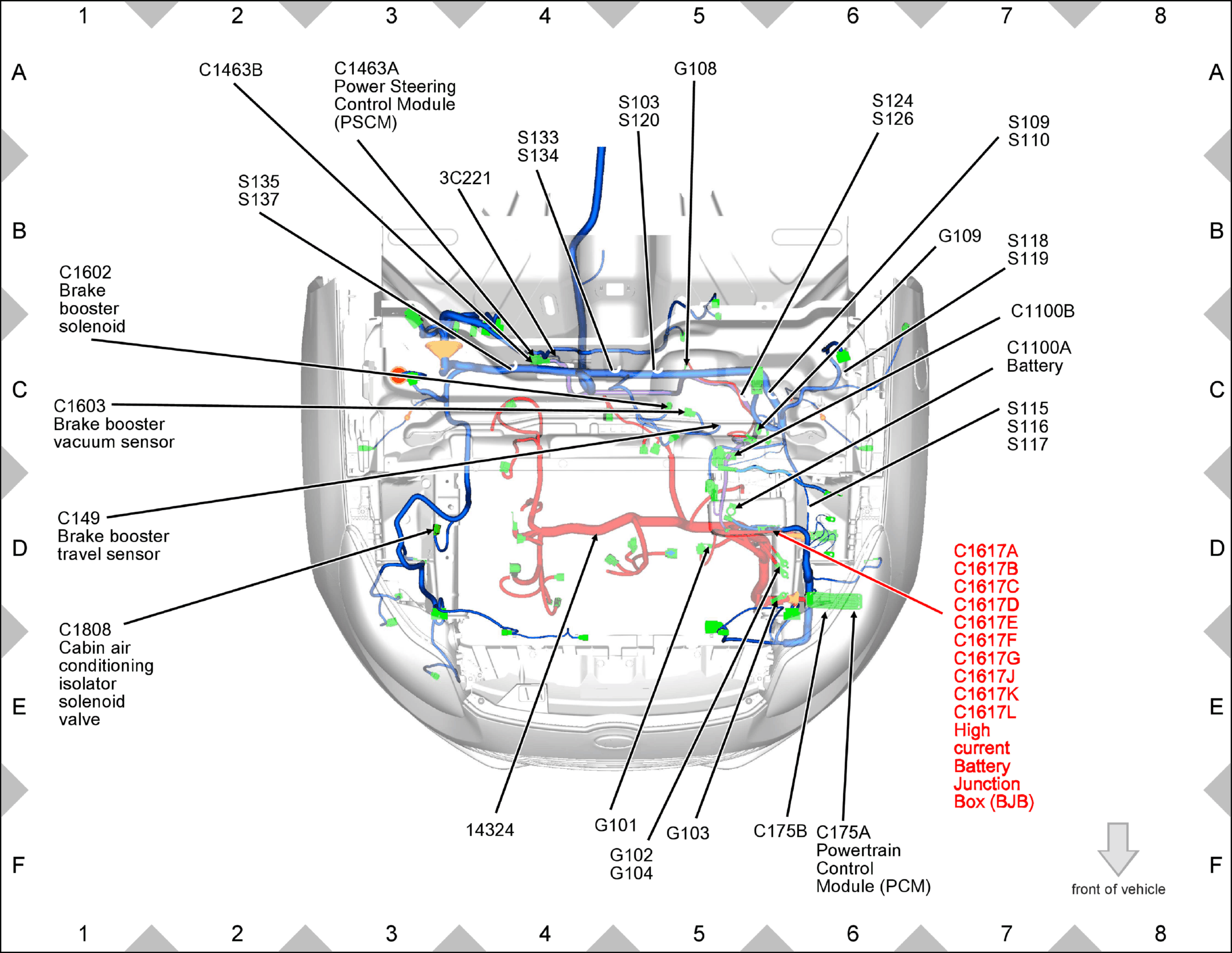

Fig 1: High Current Battery Junction Box (BJB) Component Location

GFDW53167

Courtesy of FORD MOTOR COMPANY
