Heated Seat Module, Driver Side Front

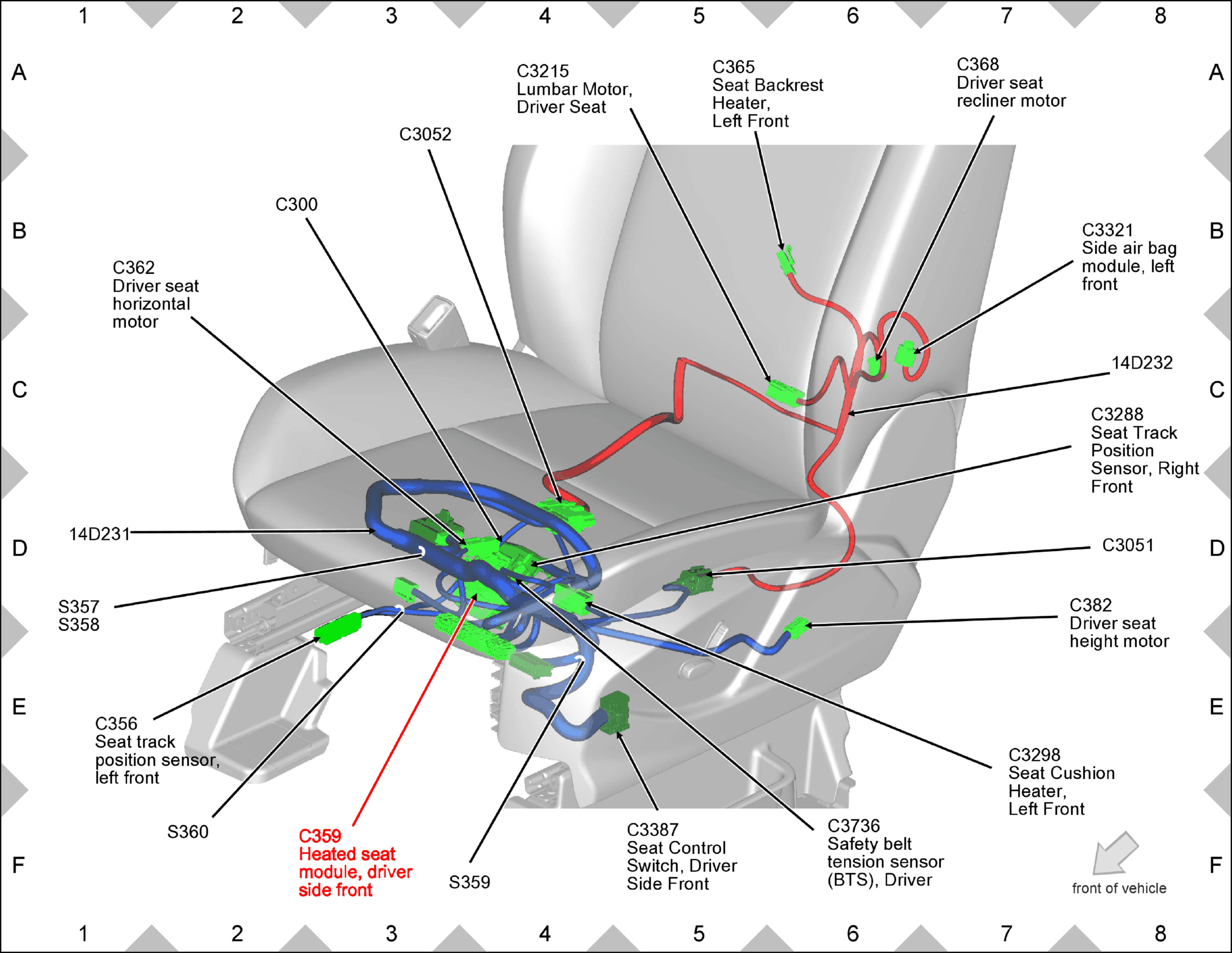

Fig 1: Heated Seat Module, Driver Side Front Component Location

GFDW53166

Courtesy of FORD MOTOR COMPANY
