Footwell Air Discharge Temperature Sensor, LH
Footwell Air Discharge Temperature Sensor, LH

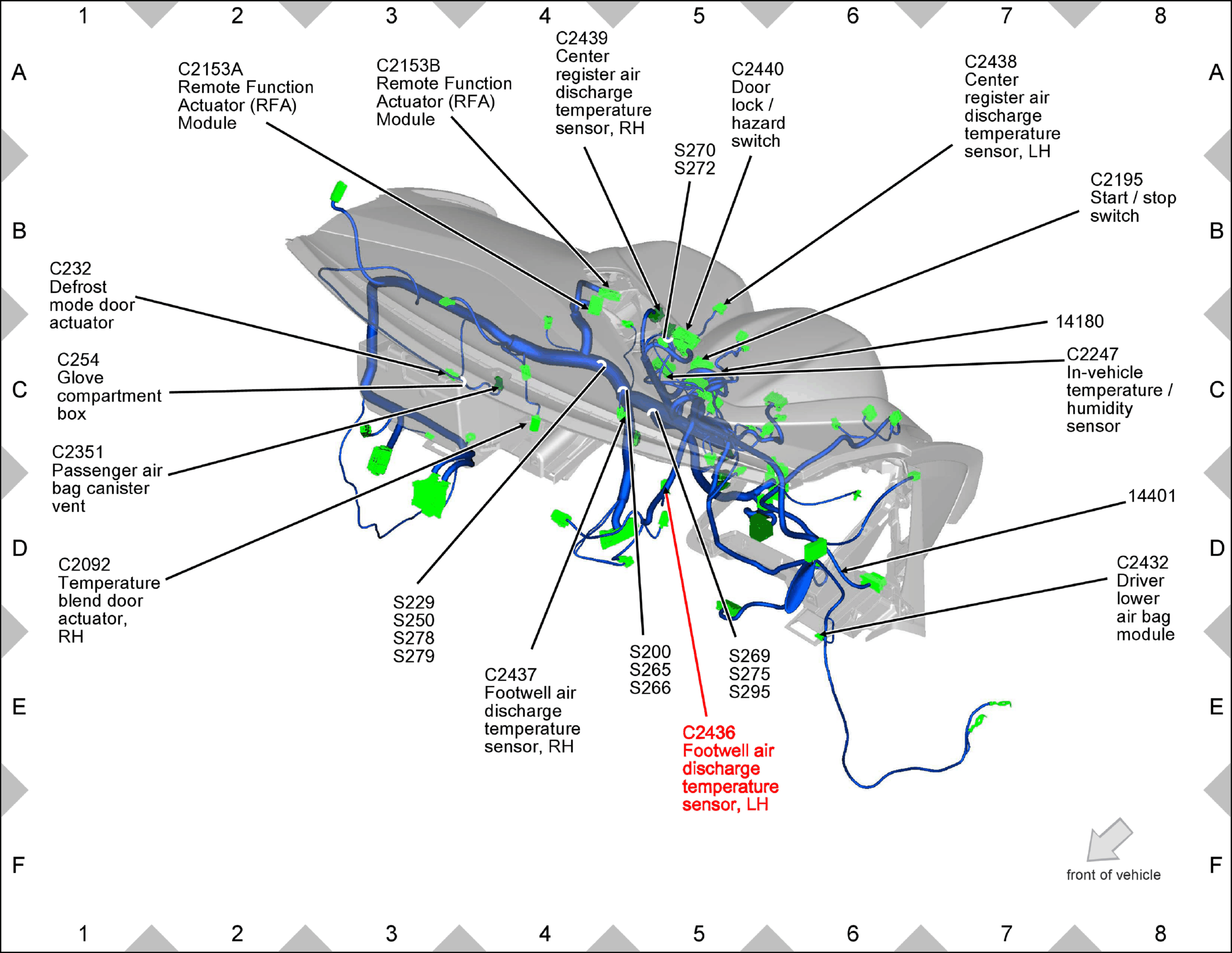

Fig 1: Footwell Air Discharge Temperature Sensor, LH Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
