Driver Seat Horizontal Motor
Driver Seat Horizontal Motor

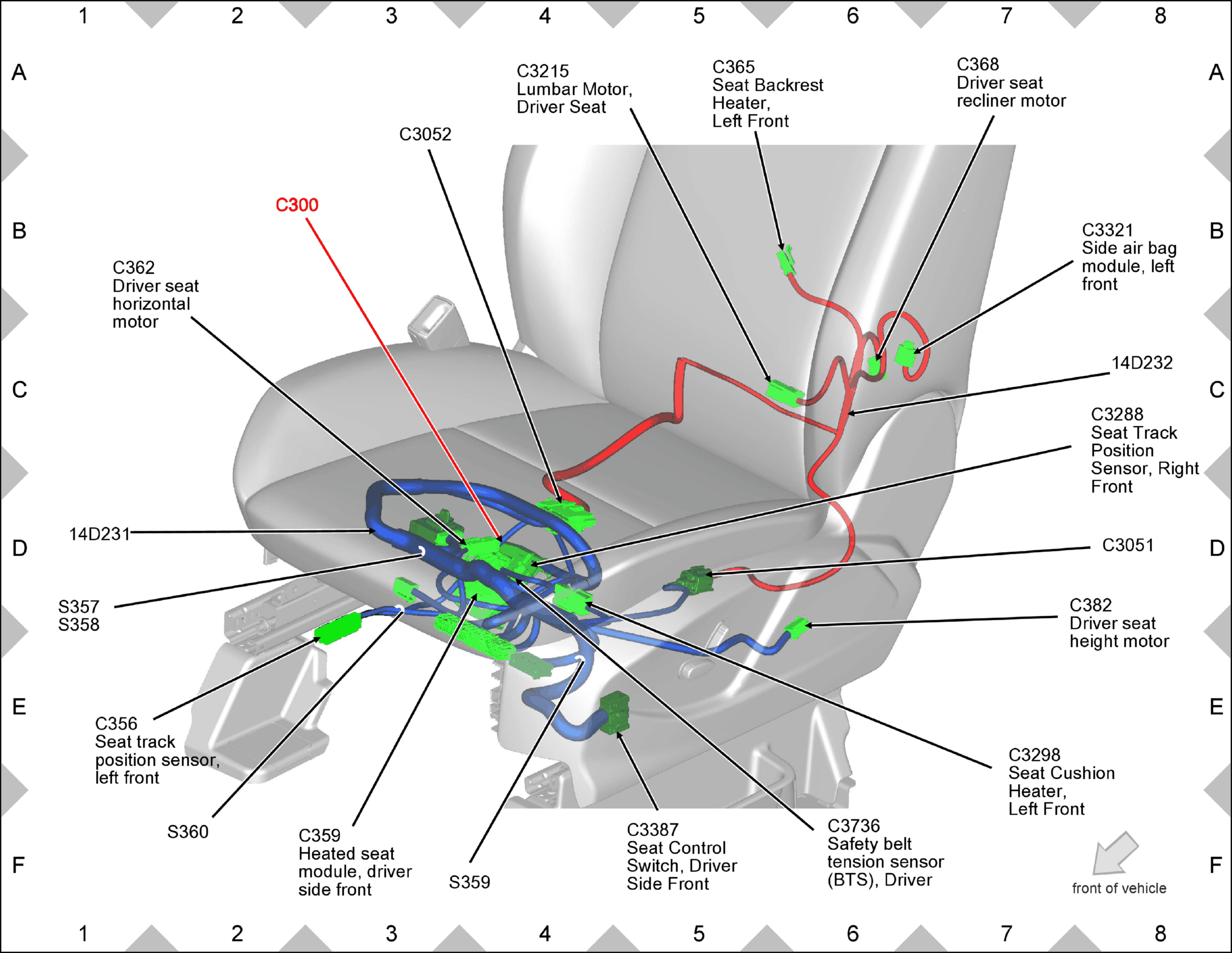

Fig 1: Driver Seat Horizontal Motor Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
