Door Module, Left Rear

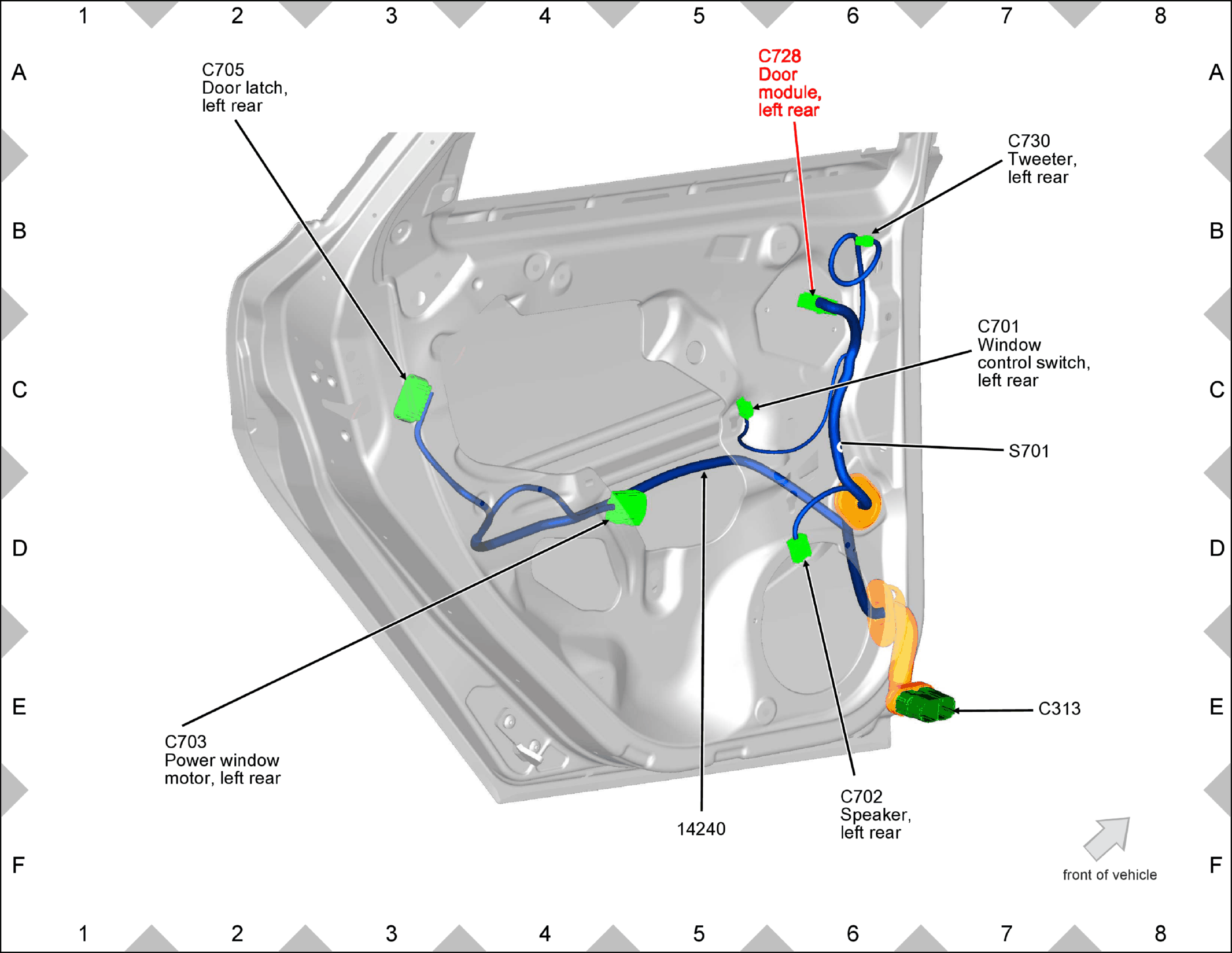

Fig 1: Door Module, Left Rear Component Location

GFDW53142

Courtesy of FORD MOTOR COMPANY
