Charge Port Light Ring

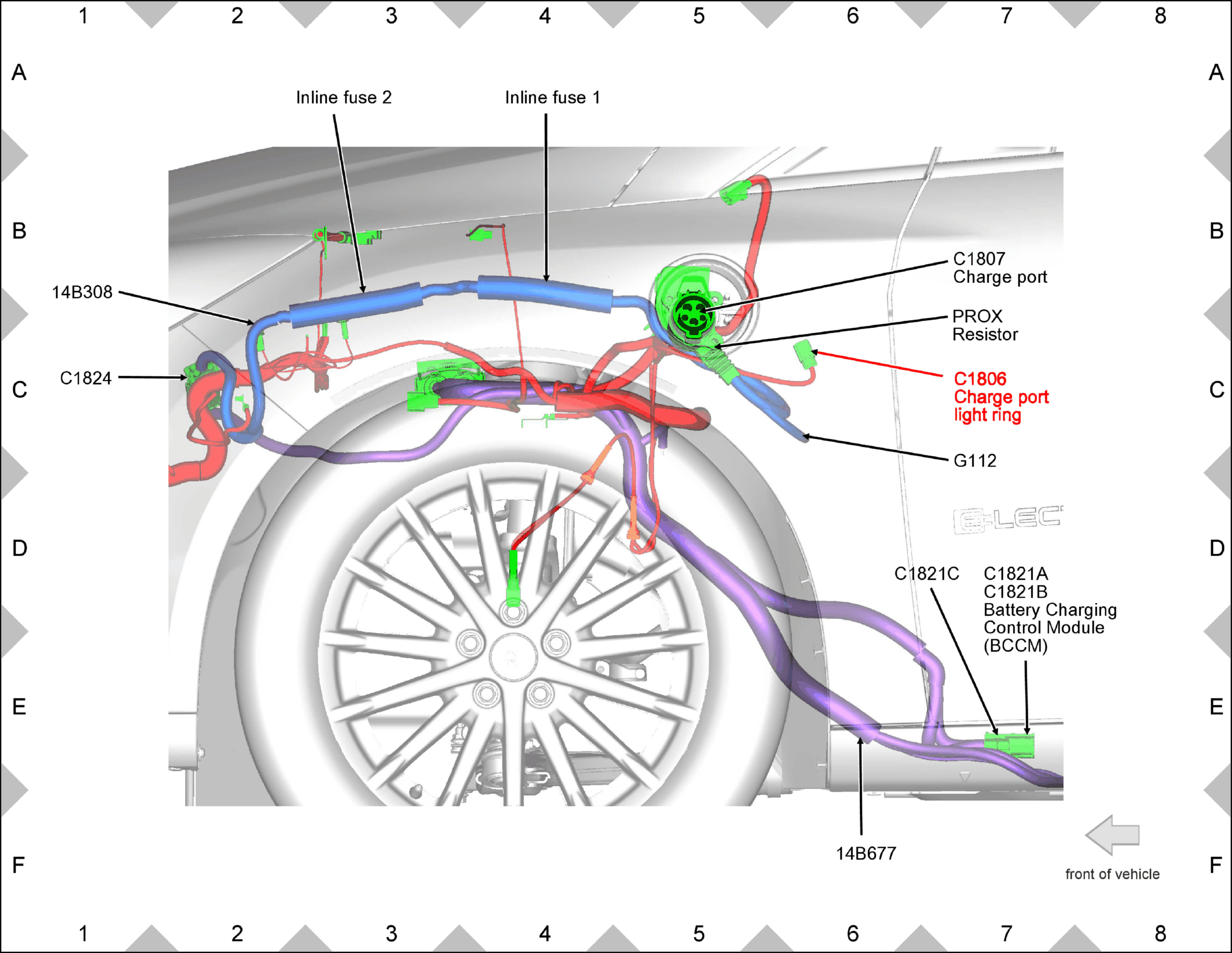

Fig 1: Charge Port Light Ring Component Location

GFDW53130

Courtesy of FORD MOTOR COMPANY
