OEM Component Harness Location Charts (Electric Vehicle)
>>
Component Location Charts
>>
Cabin Heater Coolant Pump
Cabin Heater Coolant Pump

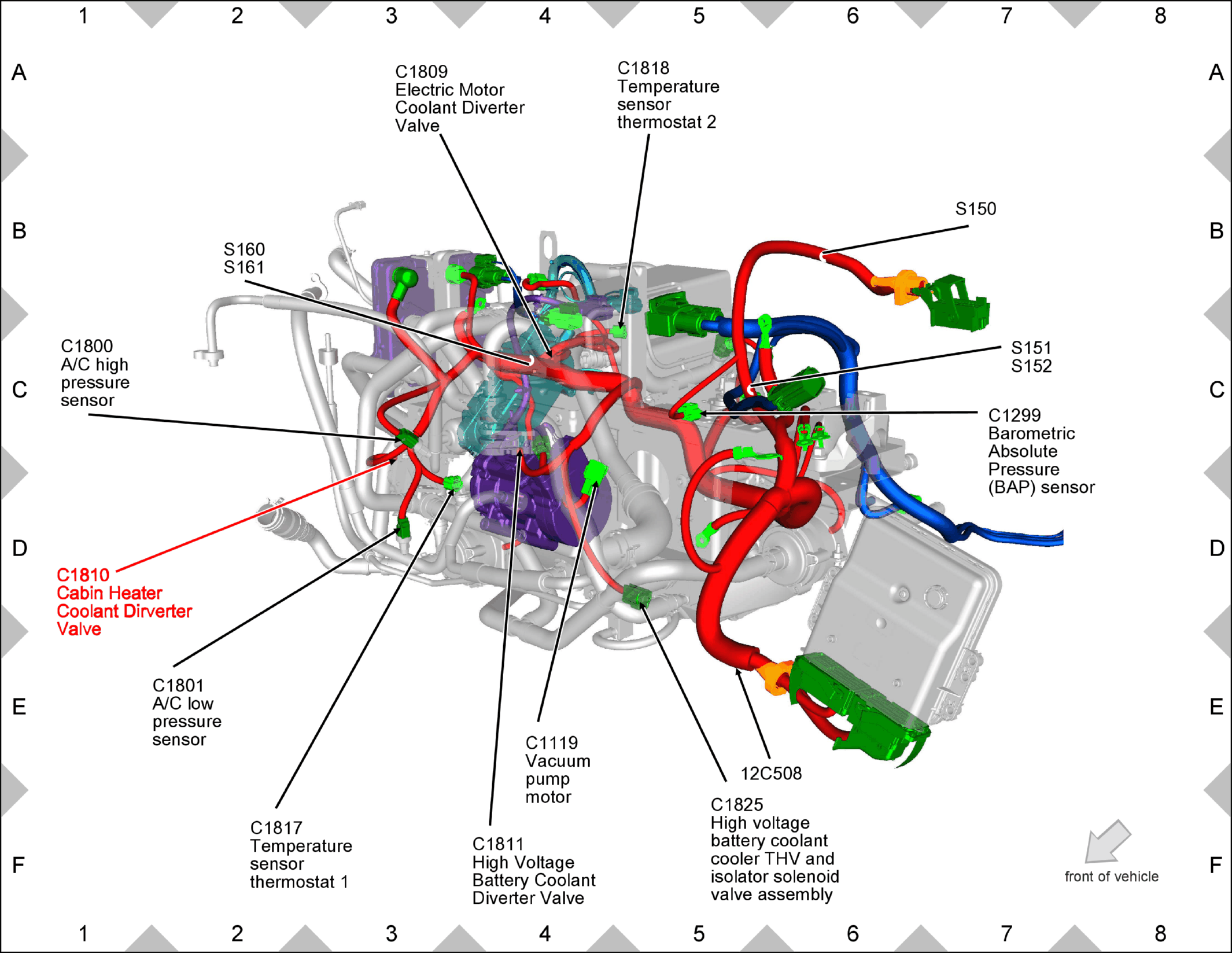

Fig 1: Cabin Heater Coolant Pump Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
