OEM Component Harness Location Charts (Electric Vehicle)
>>
Component Location Charts
>>
Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor

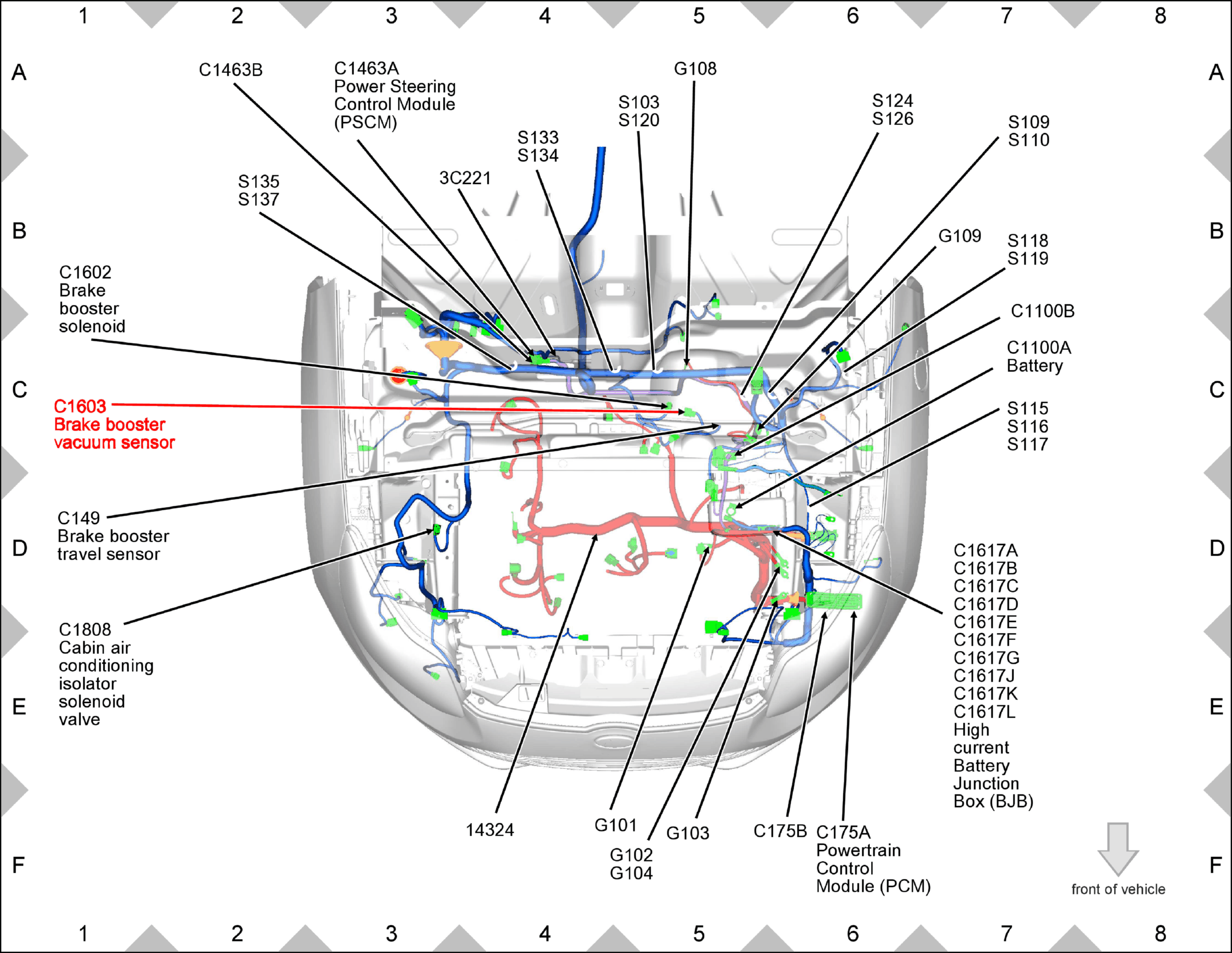

Fig 1: Brake Booster Vacuum Sensor Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
