Brake Booster Travel Sensor
Brake Booster Travel Sensor

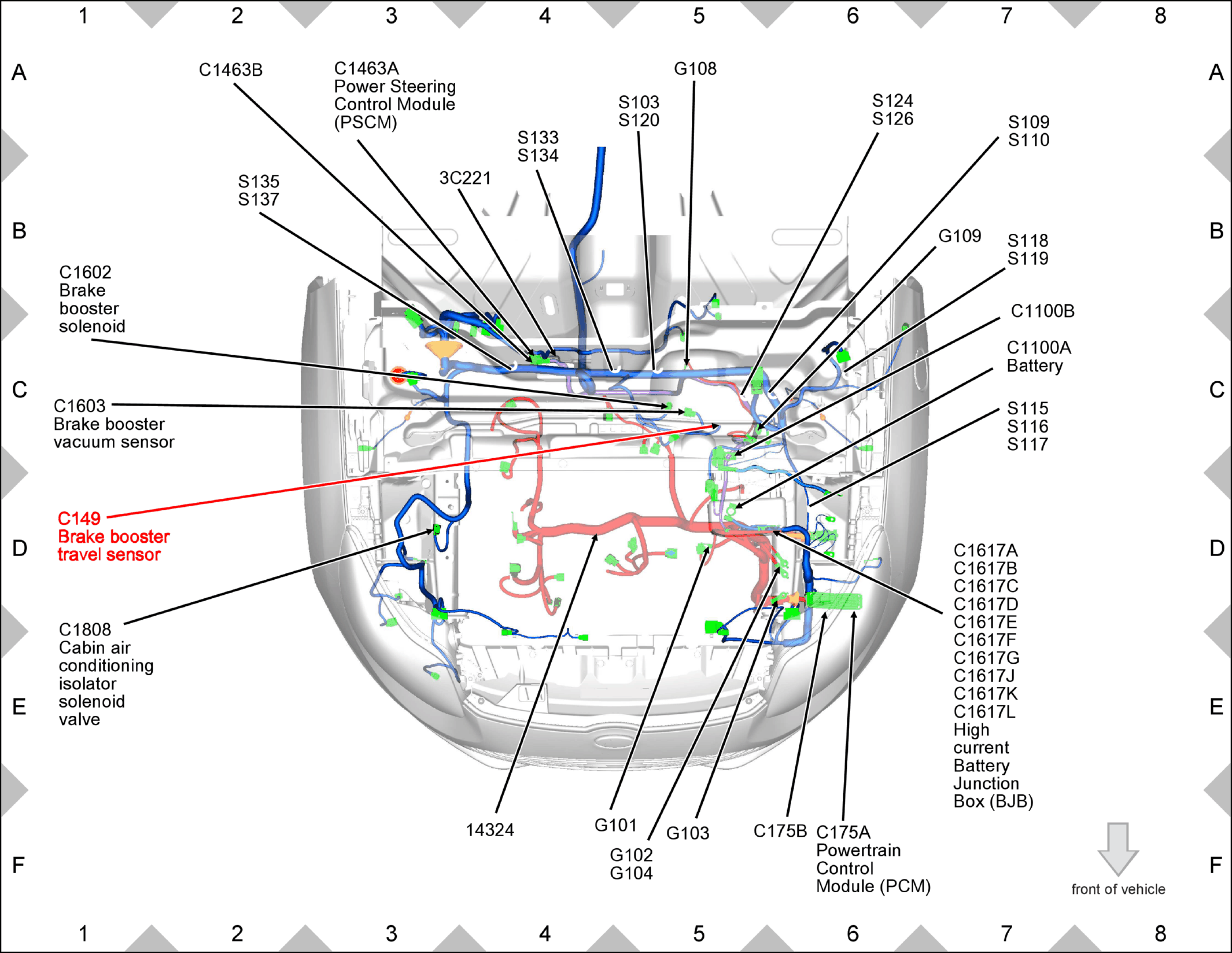

Fig 1: Brake Booster Travel Sensor Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
