Air Inlet Blend Door Actuator

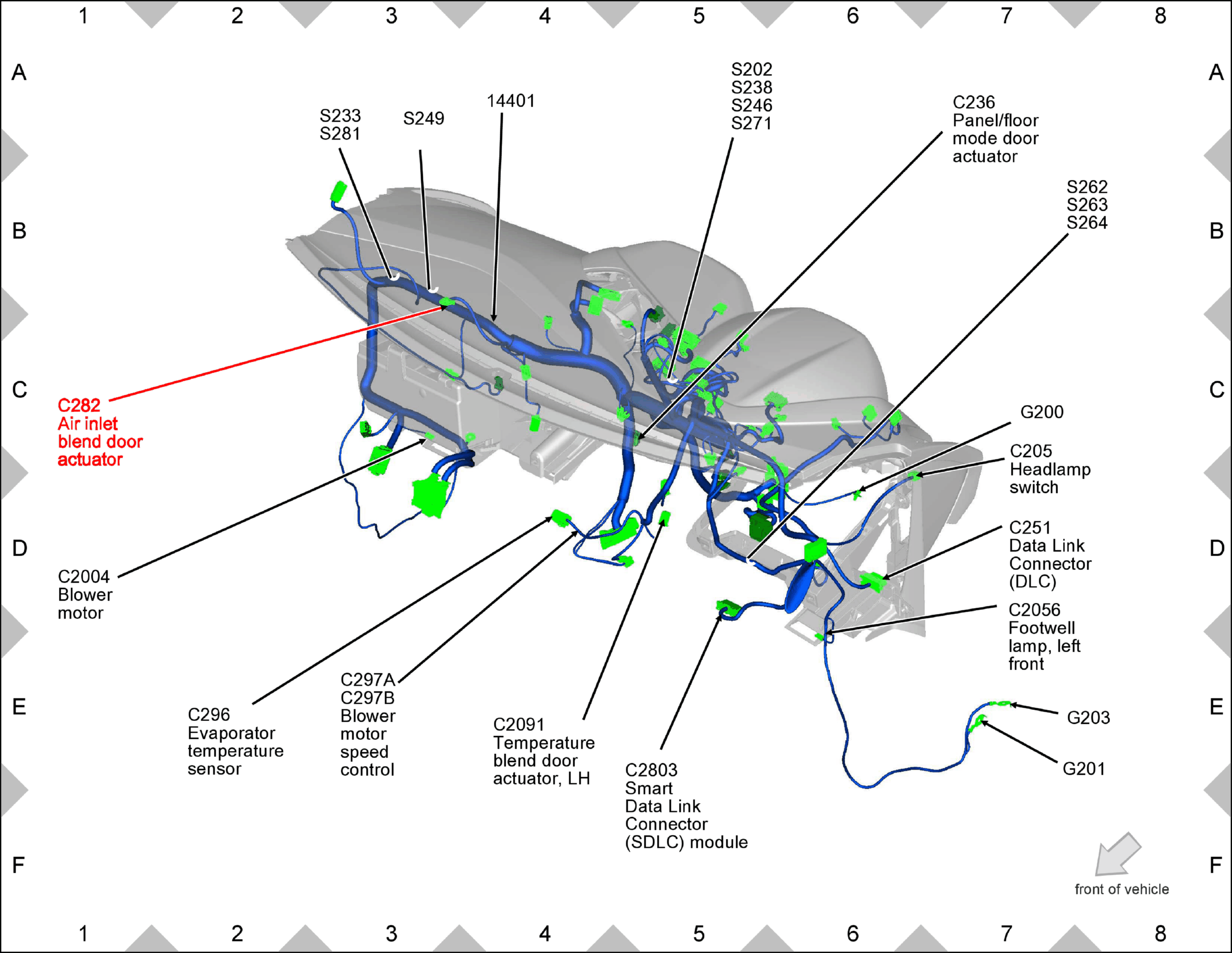

Fig 1: Air Inlet Blend Door Actuator Component Location

GFDW53103

Courtesy of FORD MOTOR COMPANY
