Parking Aid System - Vehicles With: Rear Parking Aid (Electric Vehicle)
>>
Description And Operation
>>

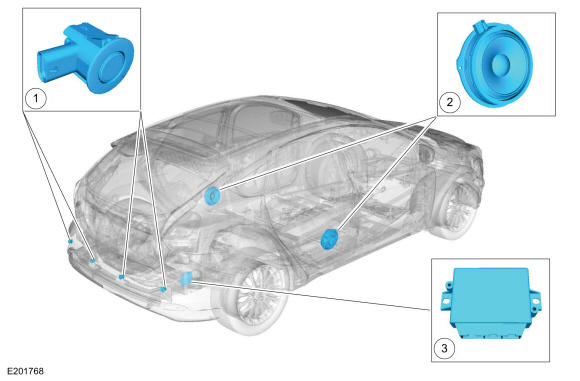

Parking Aid - Component Location
>>
Parking Aid - Audible
Parking Aid - Audible
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Rear parking aid sensors
2
Speaker, rear door (part of audio system)
3
Parking Aid Module (PAM)
