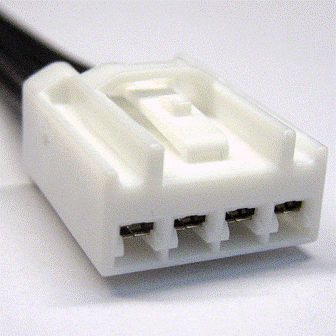

Connector End View (C278) - BRAKE PEDAL POSITION SWITCH
Connector: C278
Description
BRAKE PEDAL POSITION SWITCH
Color
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBB59 (BU-RD) | 20 | FUSE - 59 OR CIRCUIT BREAKER | |
| 2 | CES09 (VT-OG) | 20 | SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + | |
| 3 | GD113 (BK-YE) | 18 | GROUND - COWL TOP RIGHT | |
| 4 | CCB08 (VT-WH) | 20 | SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-912 |
Service Part Number: 8U2Z-14S411-HA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety |
