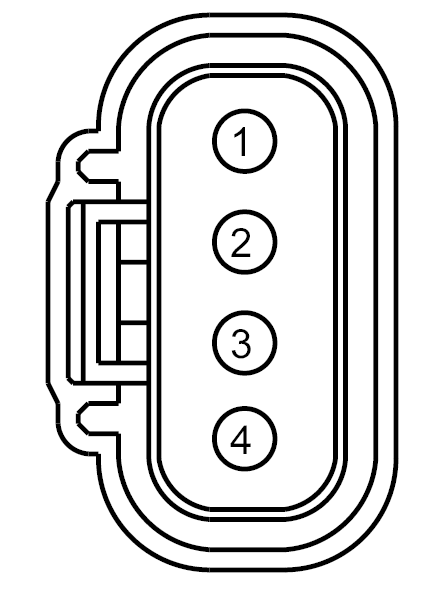

Connector End View (C271) - BLOWER MOTOR SPEED CONTROL
Connector: C271
Description
BLOWER MOTOR SPEED CONTROL
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD375 (BK-BU) | 12 | GROUND - TUNNEL # 2ND POINT | |
| 2 | VH301 (YE-BU) | 12 | CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR + | |
| 3 | VH101 (WH-VT) | 22 | CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL | |
| 4 | CH402 (YE-GN) | 12 | RELAY - FRONT BLOWER |
