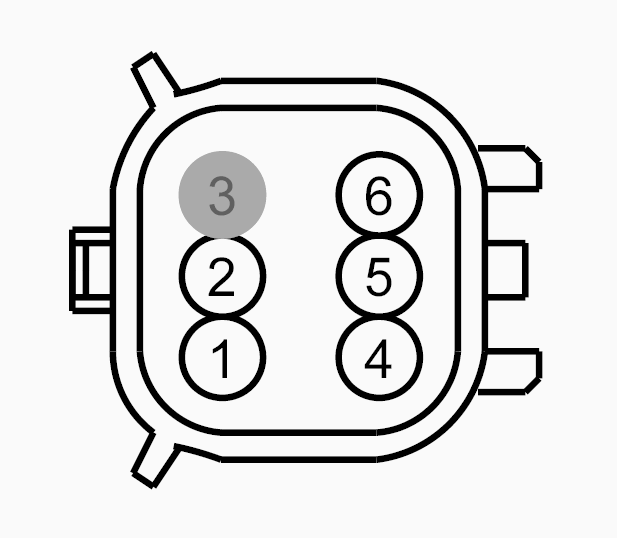

Connector End View (C172) - UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #21
Connector: C172
Description
UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #21
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | |
| 2 | CE236 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21) | |
| 3 | * | * | Not Used | |
| 4 | VE827 (WH-GN) | 18 | SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21) | |
| 5 | LE449 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21) | |
| 6 | LE450 (WH) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21) |
| Available Pigtail Kits | |

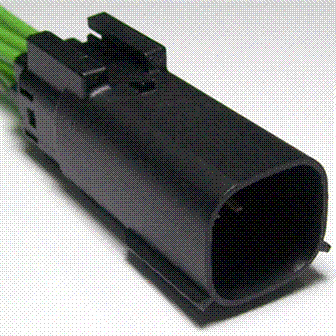

| Pigtail Kit Part Number WPT-1426 |
Service Part Number: FU2Z-14S411-TA Gauge: 16 Pin material: Silver Cavities: 6 Vehicle Uses Camera - Reverse Park Aid Lamp - Park/Turn/Stop Sensor - Coolant Temperature Sensor - O2 (HEGO/ EGO) |
