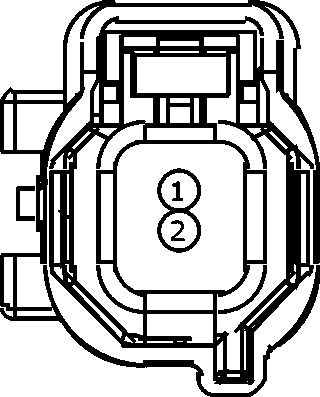

Connector End View (C160) - WHEEL SPEED SENSOR, RIGHT FRONT

Connector: C160

Description

WHEEL SPEED SENSOR, RIGHT FRONT

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCA05 (GY-VT)	20	SENSOR - WHEEL SPEED RIGHT FRONT
2	RCA19 (VT)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1116

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BJA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Lamp - Running Board

Sensor - Knock

Sensor - Speed

Sensor - Water in Fuel
