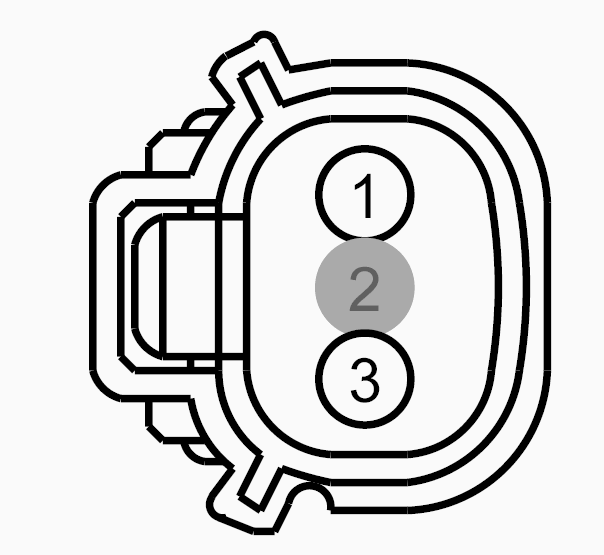

Connector End View (C111) - COIL ON PLUG (COP) 1
Connector: C111
Description
COIL ON PLUG (COP) 1
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE303 (WH-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) | |
| 2 | * | * | Not Used | |
| 3 | CBK04 (VT) | 16 | FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-931 |
Service Part Number: 9U2Z-14S411-EA Gauge: 14 Pin material: Silver Cavities: 3 Vehicle Uses Coil - Ignition |
