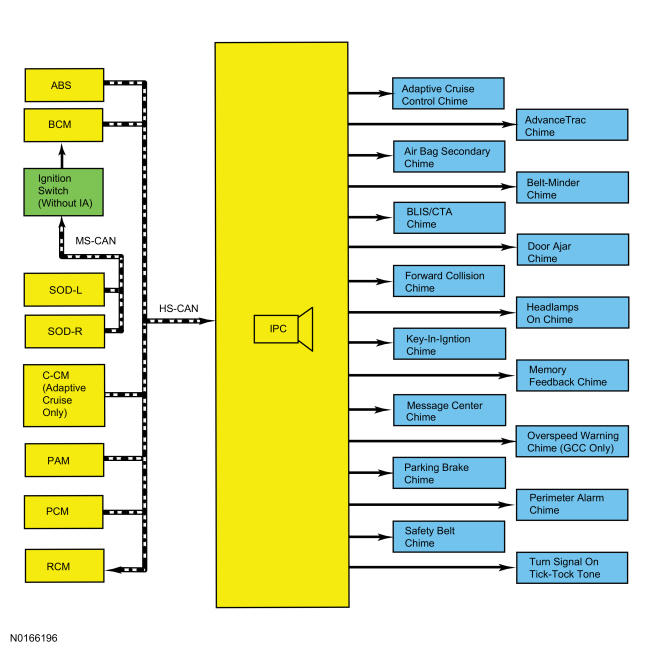

Home >> Ford >> 2016 >> Flex SEL, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Information Center - Instrumentation, Message Center, And Warning Chimes >> Description And Operation >> Warning Chimes >> System Operation >> System Diagram
