Connector End View (C327) - INLINE
Inline C327
Description
INLINE
Color
none
Base Part #
Service Pigtail
See Below
MALE
Harness 2410H43
FEMALE
Harness 13A718
| Pin | Circuit | Gauge | Qualifier |
| 1 | * (OG) | 22 | 2410H43 |
| 1 | CLN44 (OG) | 22 | 13A718 |
| 2 | * (BN) | 22 | 2410H43 |
| 2 | RLN44 (BN) | 22 | 13A718 |
| 3 | * (GN) | 22 | 2410H43 |
| 3 | CLN45 (GN) | 22 | 13A718 |
| 4 | * (BU) | 22 | 2410H43 |
| 4 | CLN46 (BU) | 22 | 13A718 |
| Available Pigtail Kits | |

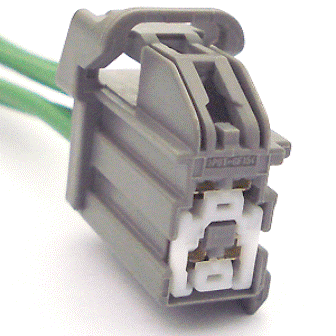

| Pigtail Kit Part Number WPT-1076 |
Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses: Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top |
| Pigtail Kit Part Number WPT-977 |
Service Part Number: 3U2Z-14S411-LUB Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses: Element - Heated Seat Lamp - Ambient Lighting Lamp - Courtesy - Footwell Mirror - Sideview Motor - Adjustable Pedal Motor - Steering Column Adjust Solenoid - Brake Shift Park Interlock Speaker - Subwoofer Switch - Gear Shift Select/Neutral Safety Transceiver - Passive Anti-Theft (PATS) |
