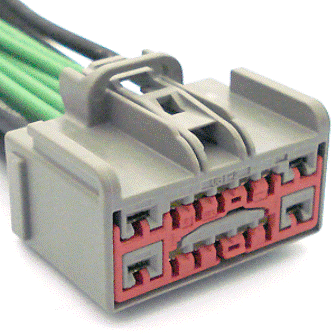

Connector End View (C314) - INLINE
Inline C314
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14632
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | CBP48 (GY-YE) | 12 | |
| 2 | CPW14 (VT-WH) | 20 | 14632 |
| 2 | CPW14 (VT-WH) | 22 | 14A005 |
| 3 | CPW18 (GY-VT) | 20 | 14632 |
| 3 | CPW18 (GY-VT) | 22 | 14A005 |
| 4 | CPW17 (BN-GN) | 20 | 14632 |
| 4 | CPW17 (BN-GN) | 22 | 14A005 |
| 5 | CPL11 (GY-BN) | 16 | 14A005 |
| 5 | CPL11 (GY-BN) | 18 | 14632 |
| 6 | VME12 (BN-WH) | 18 | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | CPL39 (YE) | 20 | 14632 |
| 11 | CPL39 (YE) | 26 | 14A005 |
| 12 | CPL52 (VT-GY) | 16 | 14A005 |
| 12 | CPL52 (VT-GY) | 18 | 14632 |
| 13 | RME12 (BN-BU) | 18 | |
| 14 | GD348 (BK-YE) | 12 | 14A005 |
| 14 | GD348 (BK-YE) | 14 | 14632 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-955 |
Service Part Number: 3U2Z-14S411-BJAC Gauge: 12 14 16 Pin material: Tin & Silver Cavities: 14 Vehicle Uses: Connector - Inline |
