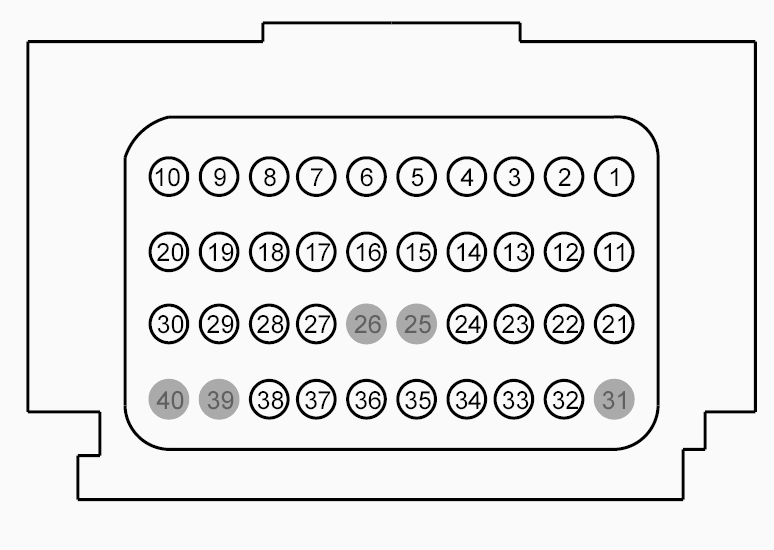

Connector End View (C310B) - RESTRAINTS CONTROL MODULE (RCM)
Connector: C310B
Description
RESTRAINTS CONTROL MODULE (RCM)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RR170 (BU-BN) | 4 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) - | |
| 2 | CR170 (GY-VT) | 4 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) + | |
| 3 | CR120 (BU-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + | |
| 4 | RR120 (BN-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - | |
| 5 | RR105 (GY-YE) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - | |
| 6 | CR105 (GN-BU) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + | |
| 7 | CR109 (BN-BU) | 18 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + | |
| 8 | RR109 (BU-GN) | 18 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - | |
| 9 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 10 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 11 | RR147 (YE-VT) | 4 | CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD - | |
| 12 | CR147 (GN-OG) | 4 | CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD + | |
| 13 | CR122 (WH-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + | |
| 14 | RR122 (BN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - | |
| 15 | RR106 (YE-OG) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD - | |
| 16 | CR106 (VT-GY) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD + | |
| 17 | CR111 (BN-WH) | 18 | CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + | |
| 18 | RR111 (YE-VT) | 18 | CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - | |
| 19 | VCA24 (GN-OG) | 22 | CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS LOW | |
| 20 | VCA23 (BU-WH) | 22 | CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS HIGH | |
| 21 | RR132 (BU-WH) | 20 | CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE - | |
| 22 | VR218 (YE-OG) | 20 | SENSOR - SIDE IMPACT FRONT PASSENGER SIDE | |
| 23 | VR219 (GN-WH) | 20 | SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE | |
| 24 | RR133 (GY-BN) | 20 | CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE - | |
| 25 | * | * | Not Used | |
| 26 | * | * | Not Used | |
| 27 | VR213 (VT-GN) | 22 | SENSOR - IMPACT FRONT 1ST | |
| 28 | RR129 (YE-GY) | 22 | CTRL MOD. - SENSOR IMPACT FRONT 1ST - | |
| 29 | RR130 (GN-BU) | 22 | CTRL MOD. - SENSOR IMPACT FRONT 2ND | |
| 30 | VR214 (WH-BU) | 22 | SENSOR - IMPACT FRONT 2ND | |
| 31 | * | * | Not Used | |
| 32 | VR215 (YE-VT) | 20 | SENSOR - SEAT TRACK POSITION DRIVER | |
| 33 | CR203 (GY-VT) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD | |
| 34 | CR201 (GN-BU) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE | |
| 35 | RR131 (VT-GY) | 20 | CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - | |
| 36 | VR217 (GY-YE) | 20 | SENSOR - SIDE IMPACT FRONT DRIVER SIDE | |
| 37 | VR220 (VT-OG) | 20 | SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE | |
| 38 | RR134 (BN-BU) | 20 | CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE - | |
| 39 | * | * | Not Used | |
| 40 | * | * | Not Used |
