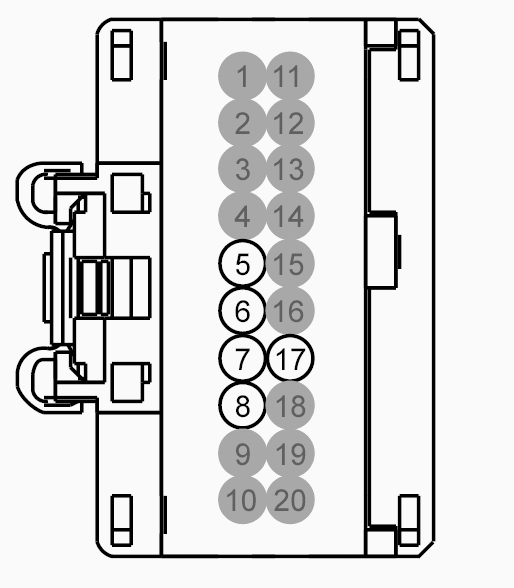

Connector End View (C228C) - HVAC MODULE, DATC
Connector: C228C
Description
HVAC MODULE, DATC
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | VLN50 (YE-BU) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED BLUE | |
| 6 | VLN49 (YE-GN) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED GREEN | |
| 7 | VLN48 (YE-OG) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED RED | |
| 8 | GD375 (BK-BU) | 20 | GROUND - TUNNEL # 2ND POINT | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | RLN44 (BN) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED - | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used |
