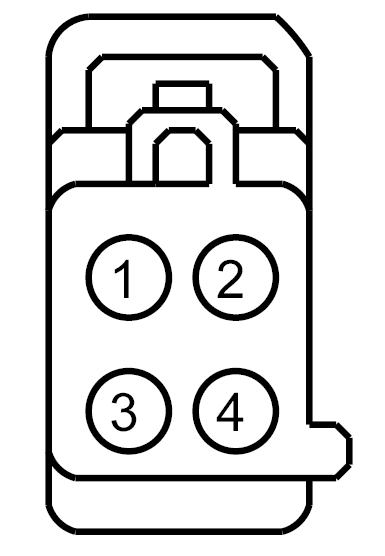

Connector End View (C227) - STEERING COLUMN TELESCOPING MOTOR
Connector: C227
Description
STEERING COLUMN TELESCOPING MOTOR
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPP22 (GY-BN) | 18 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD | |
| 2 | VPP17 (VT-BN) | 20 | SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) | |
| 3 | CPP05 (WH-VT) | 18 | CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON | |
| 4 | RPP06 (GN) | 20 | CTRL MOD. - SENSOR ADJUSTABLE PEDAL - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1191 |
Service Part Number: BU2Z-14S411-AEA Gauge: 14 18 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Motor - Seat Recline Motor - Steering Column Adjust |
