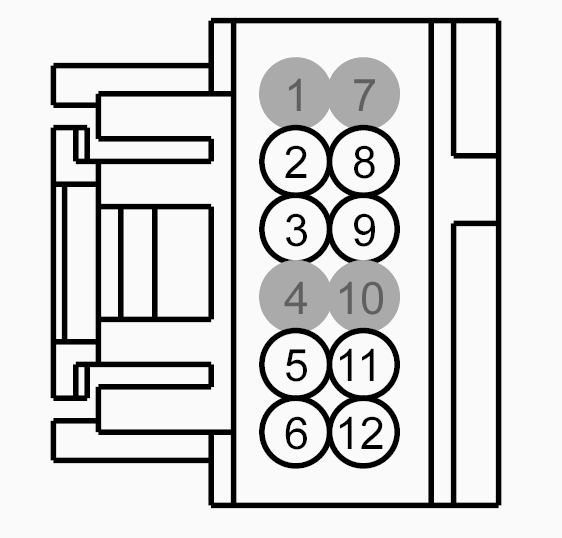

Connector End View (C218A) - CLOCKSPRING
Connector: C218A
Description
CLOCKSPRING
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | RHS73 (BN-BU) | 20 | CTRL MOD. - HEATER STEERING WHEEL # SENSOR | |
| 3 | CHS71 (BU) | 20 | CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER | |
| 4 | * | * | Not Used | |
| 5 | CR102 (BU) | 20 | CTRL MOD. - AIR BAG DRIVER 2 + | |
| 6 | CR101 (VT-BN) | 20 | CTRL MOD. - AIR BAG DRIVER 1+ | |
| 7 | * | * | Not Used | |
| 8 | GD375 (BK-BU) | 20 | GROUND - TUNNEL # 2ND POINT | |
| 9 | VLN04 (VT-GY) | 20 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 10 | * | * | Not Used | |
| 11 | RR102 (WH) | 20 | CTRL MOD. - AIR BAG DRIVER 2 - | |
| 12 | RR101 (YE-GN) | 20 | CTRL MOD. - AIR BAG DRIVER 1 - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-949 |
Service Part Number: 3U2Z-14S411-BMAB Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety |
