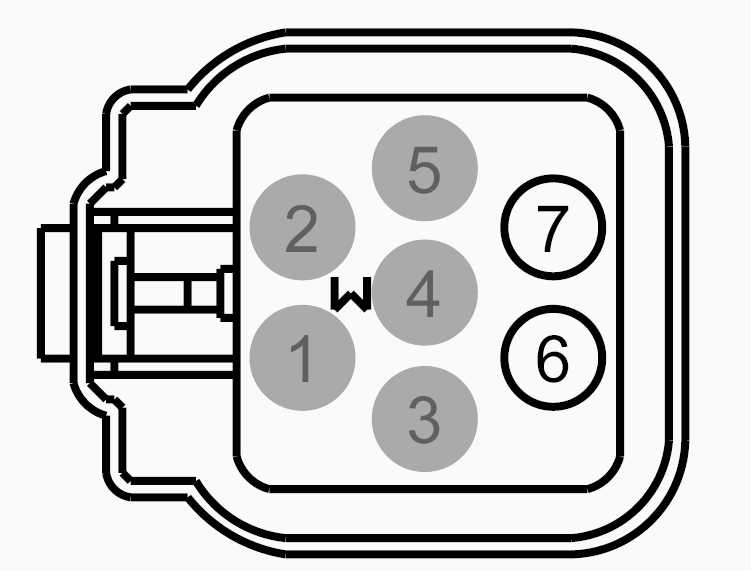

Connector End View (C161) - SIDE LAMP, RIGHT FRONT
Connector:C161
Description
SIDE LAMP, RIGHT FRONT
Color
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
| 7 | CLS30 (VT-WH) | 20 | RELAY - PARK LAMP |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1007 |
Service Part Number: 3U2Z-14S411-EVB Gauge: 14 Pin material: Tin (greased) Cavities: 7 Vehicle Uses Lamp - Headlamp - High/Low Beam Lamp - Side Marker |
