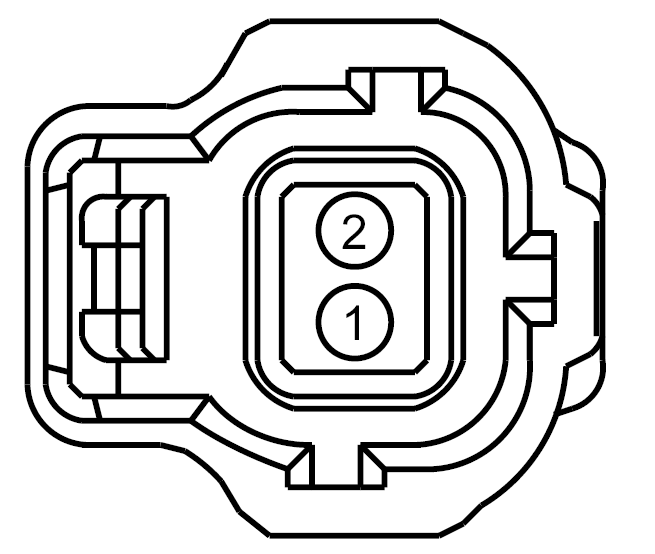

Connector End View (C129) - INTAKE AIR TEMPERATURE (IAT) SENSOR

Connector: C129

Description

INTAKE AIR TEMPERATURE (IAT) SENSOR

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)
2	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Resistor - Daytime Running Lamp (DRL)

Sensor - Air Charge Temperature

Sensor - Brake Pressure

Solenoid - Canister Vent

Switch - Brake Pressure
