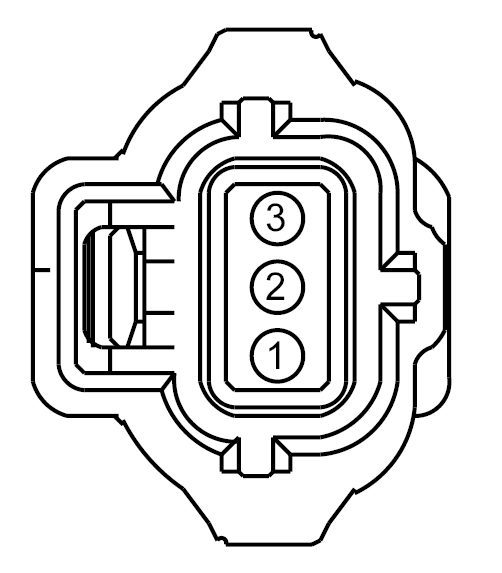

Connector End View (C124) - BRAKE FLUID LEVEL SWITCH
Connector: C124
Description
BRAKE FLUID LEVEL SWITCH
Color
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | |
| 2 | CMC19 (GY-VT) | 20 | SWITCH - LOW LEVEL BRAKE FLUID | |
| 3 | RMC19 (YE-GY) | 20 | SWITCH - LOW LEVEL BRAKE FLUID |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-118 |
Service Part Number: 1U2Z-14S411-TA Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses Alternator Sensor - Brake Fluid Level Sensor - Throttle Position |
