Fuel Tank: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation steps.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- 3.
Drain the fuel tank. Refer to: Fuel Tank Draining .
- 4.
Remove the rear seat cushion. Refer to: Rear Seat Cushion .
- 6.

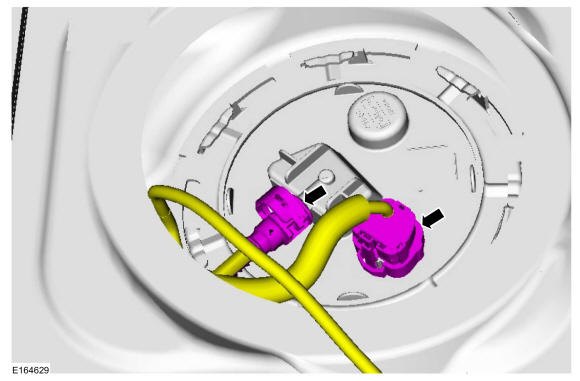

Disconnect the electrical connector and the fuel line quick release coupling. Refer to: Quick Release Coupling .
- 9.

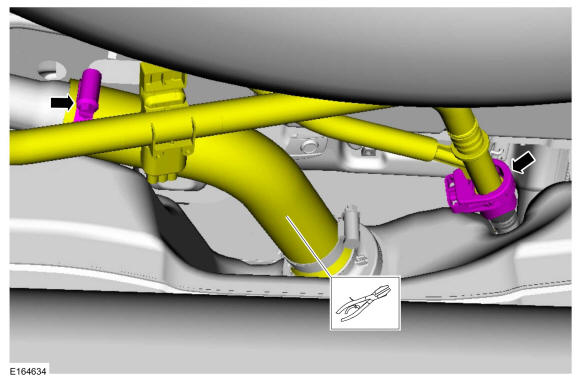

- Clamp off the fuel filler pipe hose.Use the General Equipment: Hose Clamp(s)
- Release the clamp and position aside the filler pipe hose.
- Disconnect vapor line quick release coupling and position aside. Refer to: Quick Release Coupling .
- 10.

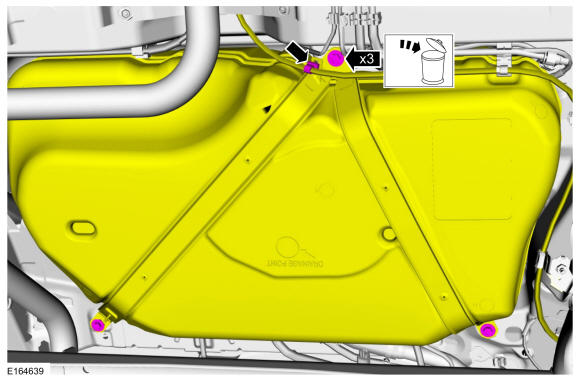

Remove and discard the fuel tank strap bolts.Use the General Equipment: Powertrain JackTorque: 18 lb.ft (25 Nm)
