Fuel Pump and Sender Unit: Installation

WARNING: This page is about a different variant/trim than selected.

1.

NOTE: Make sure to install a new Fuel Pump Module O-ring seal.

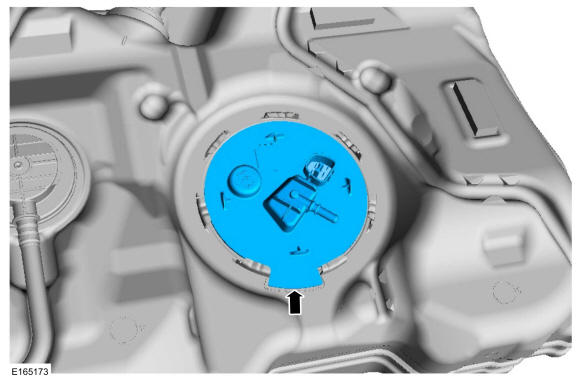

NOTE: Make sure the Fuel Pump (FP) module is installed in its original position before tightening the Fuel Pump (FP) module lock ring.

To install, reverse the removal procedure.

GFD140973

Courtesy of FORD MOTOR COMPANY
