Fuel Lines: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the Fuel Tank. Refer to: Fuel Tank .

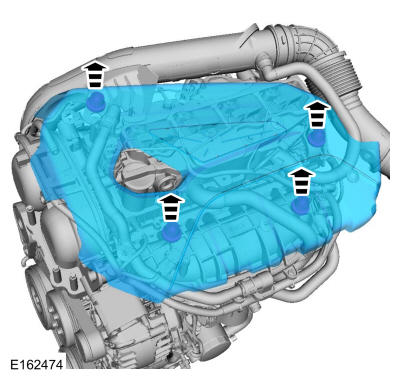

- 3.

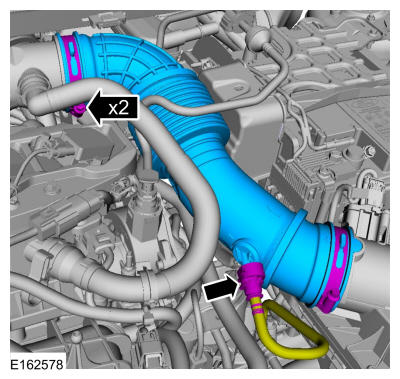

Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe . Refer to: Quick Release Coupling .
- 4.NOTE: Some residual fuel may remain in the fuel tubes after releasing the fuel system pressure. When disconnecting or removing any fuel tubes, carefully drain any residual fuel into a suitable container.NOTE: Late build shown, early build similar.
On late build vehicles, disconnect the fuel jumper tube-to-fuel rail spring lock coupling. On early build vehicles, disconnect the quick release coupling. Refer to: Quick Release Coupling . Refer to: Spring Lock Couplings .
Torque: 155 lb.in (17.5 Nm)

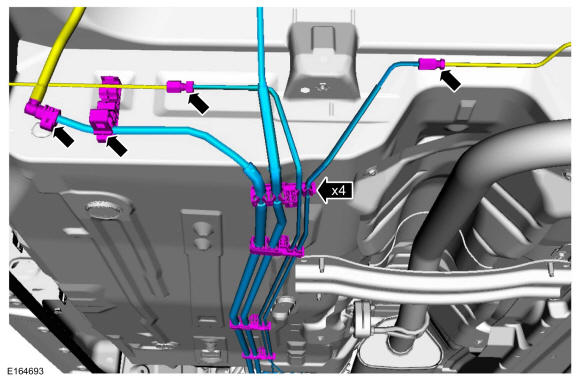

- 5.

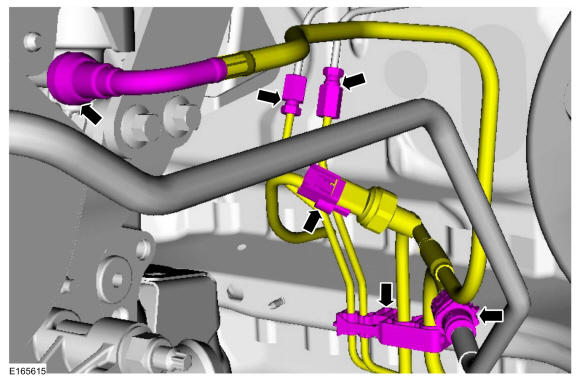

- Disconnect the brake lines.
Torque: 155 lb.in (17.5 Nm)
- Disconnect the fuel feed jumper line quick release coupling. Refer to: Quick Release Coupling .
- Release fuel line retainers and remove fuel line bundle.
- Disconnect the brake lines.
