Fuel Level Sender: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .
- 2.

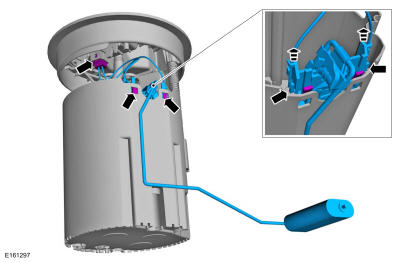

Disconnect the fuel level sender electrical connector, release the retainer tab and remove the fuel level sender.
