Throttle Body: Removal

WARNING: This page is about a different variant/trim than selected.

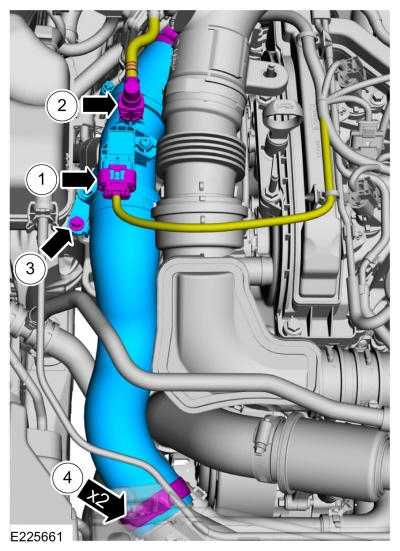

1.
- 1.

  Disconnect the turbocharger boost pressure and charge air temperature sensor electrical connector.
- 2.

  Disconnect the quick release coupling. Refer to: Quick Release Coupling .
- 3.

  Remove the Throttle Body (TB) inlet pipe retaining bolt.
- 4.

  Loosen the Throttle Body (TB) inlet pipe clamps and then remove the Throttle Body (TB) inlet pipe.

GFD139812

Courtesy of FORD MOTOR COMPANY

2.
- Disconnect the Throttle Body (TB) electrical connector.
- Remove the Throttle Body (TB) retaining bolts and then remove the Throttle Body (TB).

GFD139813

Courtesy of FORD MOTOR COMPANY
