Muffler and Tailpipe: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
The production muffler and tailpipe assembly is one-piece construction. The service muffler and tailpipe is 2-piece construction. It is necessary to cut the production exhaust system to enable the service section(s) to be fitted. Before cutting any part of the exhaust system, check that the position of the cut is correct in comparison to the service sections to be installed.
NOTE:
Service section part(s) use a service section clamp for assembly.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 3.

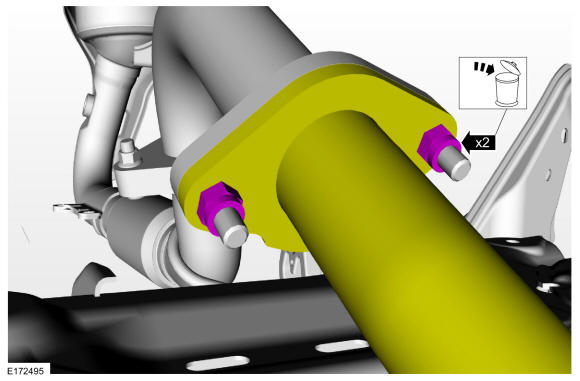

- Remove and discard the nuts and gasket.
Torque: 35 lb.ft (48 Nm)
- Position back the muffler and tailpipe.
- Remove and discard the nuts and gasket.
- 4.NOTE: Do not forcibly bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.NOTE: Service section part(s) use a service section clamp for assembly.
Service section clamp torque is 45 Nm.Carefully cut the muffler and tailpipe where shown. Detach the exhaust isolators hangers and remove the muffler and tailpipe assembly. Use the General Equipment: Air Body Saw
