Catalytic Converter: Installation
WARNING: This page is about a different variant/trim than selected.
- 2.NOTE: Only tighten the bolt finger tight at this stage.
Install the catalytic converter bracket bolt finger tight.
- 3.NOTE: Only tighten the nut and bolts finger tight at this stage.
- 1.

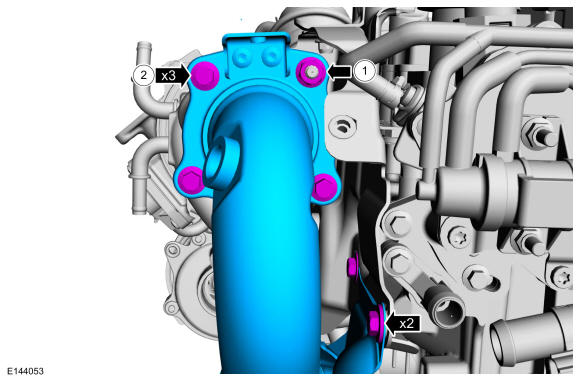

Position the catalytic converter. Tighten the catalytic converter bolts and nut finger tight.
- 2.
Tighten the catalytic converter bracket bolts finger tight.
- 1.
- 4.
- 1.
Position the catalytic converter clamp.
- 2.
Tighten the nuts for the catalytic converter clamp.Torque: 18 lb.ft (25 Nm)
- 1.
- 6.

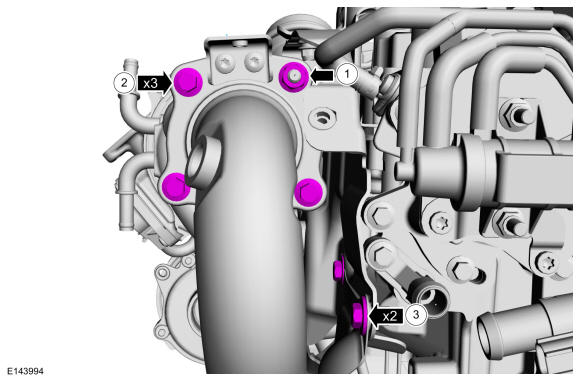

Tighten the catalytic converter nut and bolts. Tighten the catalytic converter bracket bolts.Torque:
1-2: 18 lb.ft (25 Nm)
3: 97 lb.in (11 Nm)
